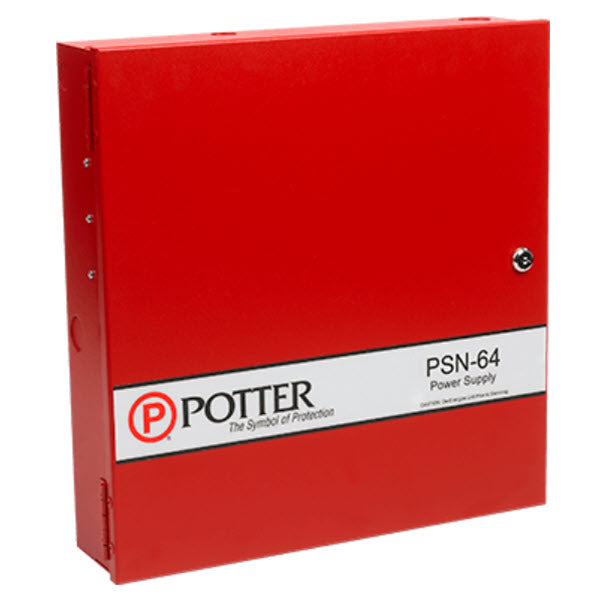

Potter Electric Signal PSN-64

Key Features

• 6 amp conventional NAC power supply with 4 output circuits
• Each output rated at 3 amps (usable continuously without derating)
• Supports 120 VAC or 220 VAC input with 24 VDC regulated output
• Battery charging capability: supports up to 55 AH batteries
• Quadrasync feature synchronizes strobes from multiple manufacturers
• Configurable DIP switch settings for each output circuit
• Two trouble relays (5A @ 30VDC) with optional delay settings
• 18 gauge cold-rolled steel cabinet with red powder coat finish
• Key lock for securing door

Technical Specifications

• Continuous Power Output: 6 amps through 4 outputs
• Individual Output: 3 amps continuous per circuit
• Input Voltage: 120 VAC or 220 VAC
• Output: 24 VDC regulated
• Battery Capacity: Up to 55 AH charging, 18 AH housing
• Circuit Configuration: Up to 3 class A Style Z circuits
• Status LEDs: Per output plus AC Power, Low Battery, Ground Fault, Comm

Certifications

• UL Listed
• Compatible with Quadrasync (AMSECO, Gentex, Cooper-Wheelock, System Sensor)
