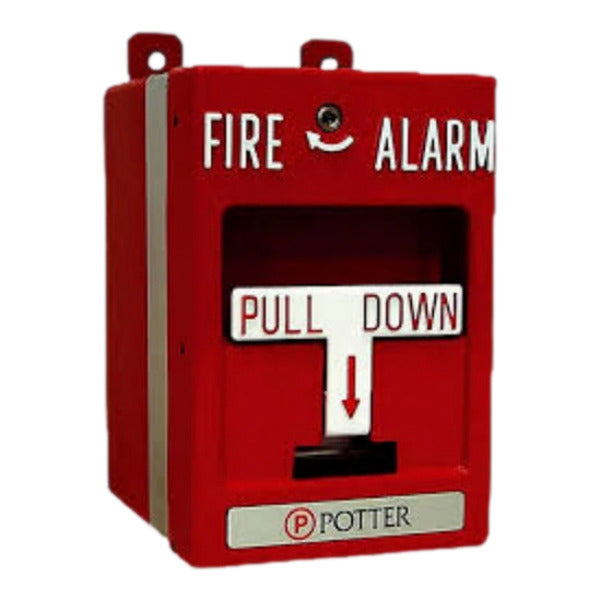

Potter Electric Signal RMS-6T
Potter Electric Signal RMS-6T
Pull Station DPDT Single Action
Regular price
$804.99
Sale price
$804.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time
Key Features
- Dual-action addressable pull station for fire alarm systems
- Activates by lifting front cover and pulling white "T" bar handle
- Cannot reset without opening front cover
- Opening front cover activates pull station
- Compatible with Potter IPA and AFC/ARC addressable control panels
- Supports Class A, Class B, and Class X SLC wiring styles
- Simple field programming with DIP switches
- Reset requires Potter WS-93 key
Technical Specifications
- Operating Voltage: 24.0 VDC Maximum
- SLC Standby Current: 200µA Maximum
- SLC Alarm Current: 200µA
- Dimensions: 4.75"H x 3.25"W x 1.75"D
- Weight: 1.46 lbs
- Operating Temperature: 32°F to 120°F
- Humidity: 0-93% (non-condensing)
- Installation: Single gang box or surface mount
Certifications
- UL 38 Listed
- ADA Compliant
- PAD protocol compatible
