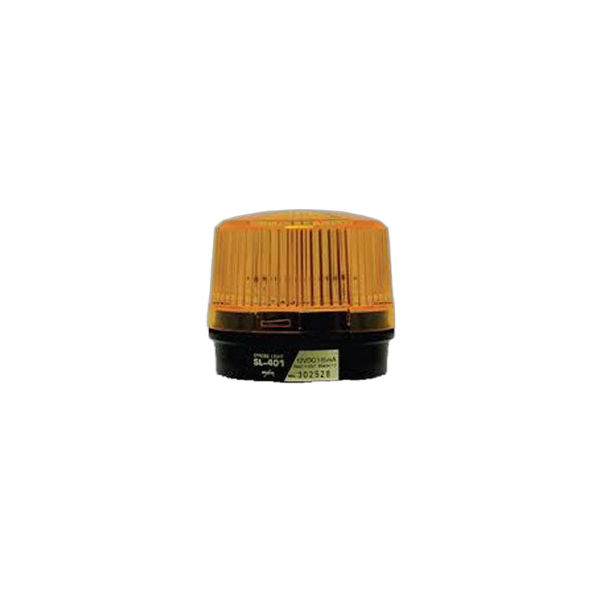

Potter Electric Signal SL-401-A

The Potter SL-401-A is a compact, weather-resistant strobe built for dependable visual fire alarm signaling on a low 115mA current draw at 12V DC. A high-impact thermoplastic housing and amber lens deliver a rated 60,000 candela output through a simple 2-wire, reverse-polarity-protected connection, so it drops into standard notification circuits without extra wiring accessories.

Key Features

• Simple 2-wire connection with reverse polarity protection
• Low 115mA current draw at 12V DC
• Weatherproof high-impact thermoplastic housing for indoor or outdoor mounting
• Rated for 200+ hours of continuous operation
• Available in amber, blue, clear, or red lens colors

Technical Specifications

• Candela Output: 60,000 cd
• Operating Voltage: 9.6–14.4 VDC
• Flash Rate: 60–100 FPM
• Current Draw: 115mA @ 12V DC
• Lead Wire: 2 x AWG 22, color-coded
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
