Powersonic PS-1212-F1
Powersonic PS-1212-F1
Out of stock; call for lead time

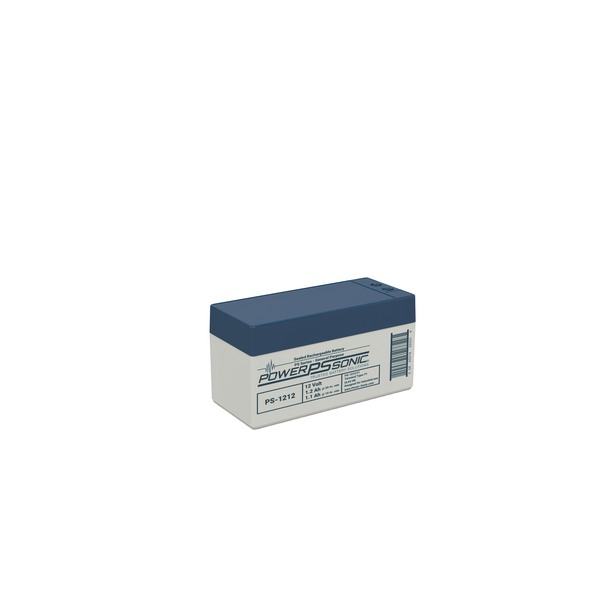

The Power-Sonic PS-1212 is a 12V, 1.2Ah sealed lead-acid (AGM) battery built as standby power for fire alarm, security, and emergency lighting panels, terminated with an F1 (0.187") quick-connect tab for direct wiring into a control panel's battery harness. Its absorbed-glass-mat construction is fully sealed and maintenance-free, holding charge in float standby service until it's called on to carry the panel through a power outage.
Key Features
- Sealed, maintenance-free AGM lead-acid construction
- F1 (0.187") quick-connect terminals for direct panel wiring
- ABS case, UL94 HB flame-rated
- Suited to fire alarm, security, emergency lighting, and UPS standby applications
Technical Specifications
- Voltage / Capacity: 12V, 1.2Ah (20-hr rate), 1.1Ah (10-hr rate)
- Dimensions: 3.82" L x 1.69" W x 2.05" H (2.28" over terminal)
- Weight: 1.15 lbs
- Max Continuous Discharge: 13.0A; Internal Resistance: 145 mΩ
- Float Charge Voltage: 13.50–13.80V; Cycle Charge Voltage: 14.10–14.40V
- Operating Temperature: Discharge 5°F to 140°F, Charge 4°F to 122°F
Certifications
- UL Recognized, UL 1989
- IEC 60896
- ISO 9001:2015 manufacturing
