Condition: New

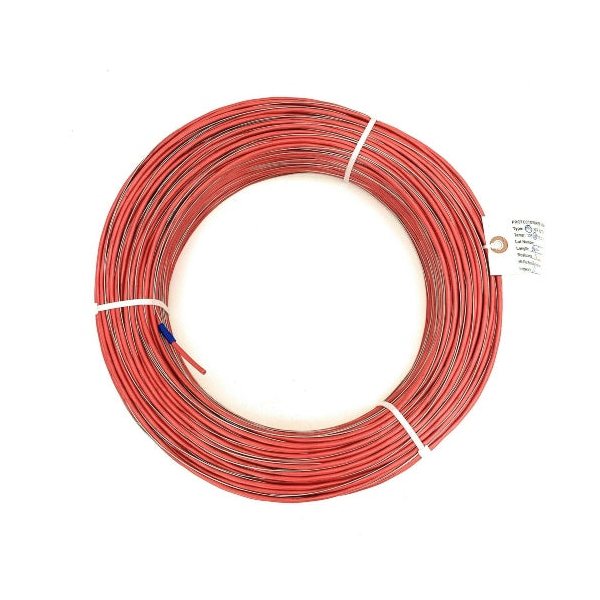

Protectowire PHSC-155-EPC
Protectowire PHSC-155-EPC
Detector Linear Heat 155F (500 FT)
Regular price
$1,437.99
Sale price
$1,437.99
Regular price
Shipping calculated at checkout.
Only 2 left!
Key Features
- Linear heat detection along entire cable length
- Fixed temperature detection at 155°F (68°C)
- Two steel conductors with heat-sensitive polymer insulation
- Alarm initiation at first heated point along cable length
- Point sensitivity with line coverage capability
Technical Specifications
- Activation Temperature: 155°F (68°C)
- Detector Type: Linear heat cable (fixed temperature)
- Material: Two independently insulated steel conductors
- Available Lengths: 500 feet (PHSC-155-EPC), 1,000 feet (PHSC-155-EPC-M), 3,280 feet (PHSC-155-EPC-3280)
- Response: Digital signal when rated temperature reached
- Weight (500 ft): Approximately 20 lbs
Certifications
- Intrinsically safe standards compliant
- Factory Mutual (FM) Approved for Class I, II, III Division 1 applicable groups
- UL Listed for industrial and commercial applications
