Protectowire PHSC-172-EPC
Protectowire PHSC-172-EPC
Only 2 left!

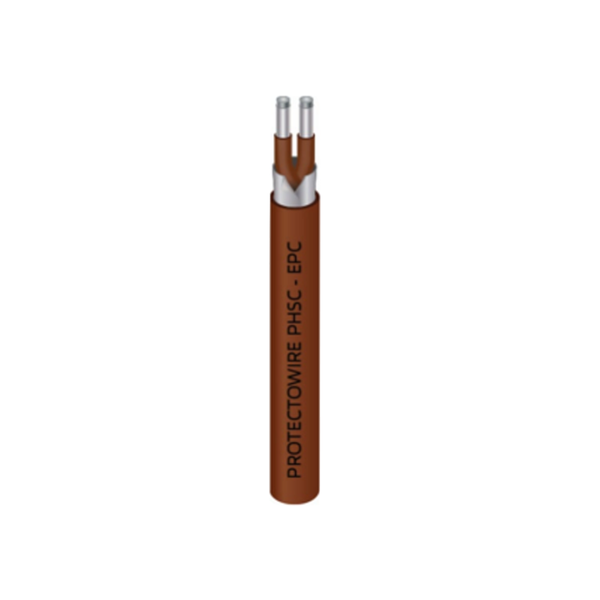

The Protectowire PHSC-172-EPC is a fixed-temperature linear heat detector cable rated to alarm at 172°F (78°C), providing continuous heat detection coverage along its entire run rather than at a single spot. Two twisted steel conductors are individually coated in a heat-sensitive polymer that yields once the cable reaches its rated temperature anywhere along its length, letting the conductors touch and close a normally-open alarm contact without needing a minimum heated length or field calibration.
Key Features
- Continuous linear heat detection with point-sensitivity anywhere along the cable run
- Fixed 172°F (78°C) alarm activation temperature
- EPC jacket: extruded, flame-retardant PVC for interior commercial/industrial use
- Interfaces to intelligent fire alarm panels via System Sensor monitor modules (M500MB, M500DM, M501M, IM-10)
- No system calibration required for ambient temperature changes
Technical Specifications
- Alarm Temperature: 172°F (78°C)
- Jacket Type: EPC (extruded PVC)
- Contact Type: Normally open
- Conductors: 2 x twisted steel, heat-sensitive polymer insulated
Certifications
- UL Listed
- FM Approved
- NFPA 72 compliant installation
