RSG DH400OE-1
RSG DH400OE-1
Out of stock; call for lead time

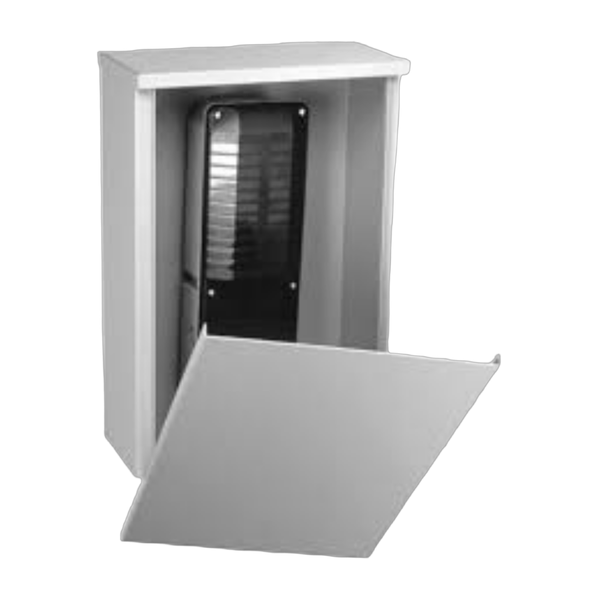

The RSG (System Sensor) DH400OE-1 is an all-weather outdoor enclosure that houses a duct smoke detector so it can be installed where the duct run itself is exposed to rain, sleet, snow, or dripping water. It's fabricated from 14-gauge galvanized steel with a gray polyester powder-coated finish, and a slip-on removable cover secured by two plated steel screws along the bottom edge gives technicians access to the detector inside for service and testing.
Key Features
- 14-gauge galvanized steel construction with gray polyester powder-coat finish
- Slip-on removable cover secured with two plated steel screws
- Bottom knockouts for connecting electrical conduit and detector sampling tube casings
- Padlock provision to prevent unauthorized tampering
Technical Specifications
- Dimensions: 18-1/8 in H x 12-1/4 in W x 6-1/16 in D
- Includes sampling tube gaskets required by UL 268A
- Application: outdoor or wet-location housing for duct smoke detectors
Certifications
- Meets UL 268A gasket requirements for duct smoke detector installations
