Condition: New
Siemens (Pyro) PAD-5-MB
Siemens (Pyro) PAD-5-MB

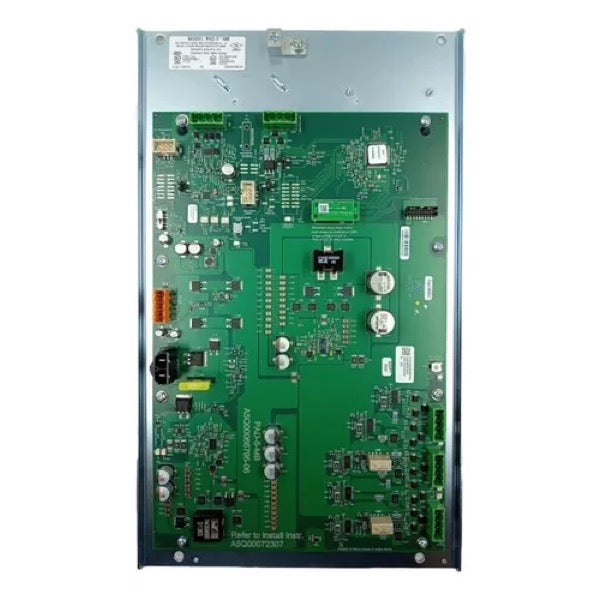

Board Main for Power Supply w/1 Adapter Plate
Regular price
$824.99
Sale price
$824.99
Regular price
Shipping calculated at checkout.
Only 2 left!
Key Features
- Main board for PAD-5 Addressable Power Supply
- Four 24V DC power-limited circuits (Class B, convertible to Class A)
- Addressable on P2 loop for remote monitoring
- Strobe-sync generator capability
- Temperature-compensated battery charger
- Dual trouble relays for supervisory indication
Technical Specifications
- NAC Outputs: Four (4) supervised, addressable circuits
- Total Load: Up to 6A (170W supply) or 9A (300W supply)
- Auxiliary Output: 24V DC at 3A (counts toward total load)
- Loop Address: One address on P2 loop
- Features: Strobe-sync generator, ANSI Temporal and March-time coding, Status LEDs, Temperature-compensated charging
- Output Voltage: Steady 24VDC independent of source fluctuations
- Conversion Option: Optional PAD-5-CLSA card for Class A configuration
Certifications
- UL Listed for fire alarm equipment
- Compatible with Siemens Modular FACP systems
- Meets fire alarm standards for addressable power supplies
