Condition: New

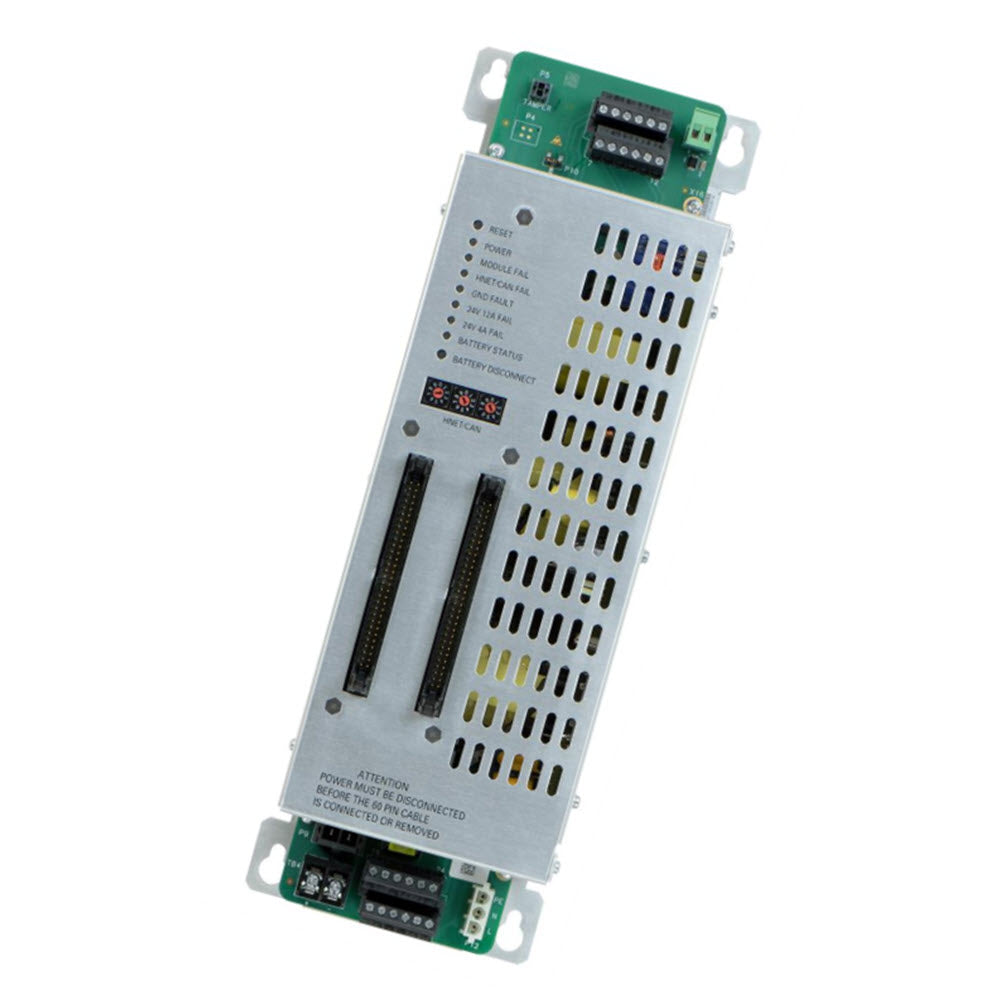

Siemens (Pyro) PSC-12M
Siemens (Pyro) PSC-12M
Power Supply Battery Charger 12A at 24Vdc
Regular price
$2,817.99
Sale price
$2,817.99
Regular price
Shipping calculated at checkout.
Only 1 left!
Key Features
- Universal power supply accepting AC input from 120–240 VAC @ 50/60 Hz
- Addressable intelligent module with microprocessor control
- Built-in battery charger for backup power management
- Auto-resettable current protection on 24VDC outputs
- Dual output terminals with configurable current limits
- Status communication to Desigo Modular Operator Interface
Technical Specifications
- Input: 120–240 VAC, 50/60 Hz (no configuration required)
- Output Voltage: 24VDC regulated
- Alarm Mode Output: 12 Amps maximum
- Standby Mode Output: 5 Amps maximum
- Power-Limited Terminal: 4A max @ 24VDC
- Non-Power-Limited Terminal: 12A max @ 24VDC
- Battery Charger: Supports 15AH to 100AH battery capacity
- Maximum Battery Charge Current: 5A
- Communication: 60-pin connector for addressable system integration
- Designed for Desigo Fire Safety Modular and Cerberus PRO systems
Certifications
- UL 864 Listed
- CSA Certified
- NFPA 72 Compliant
