Siemens (Pyro) ASC-2-RC

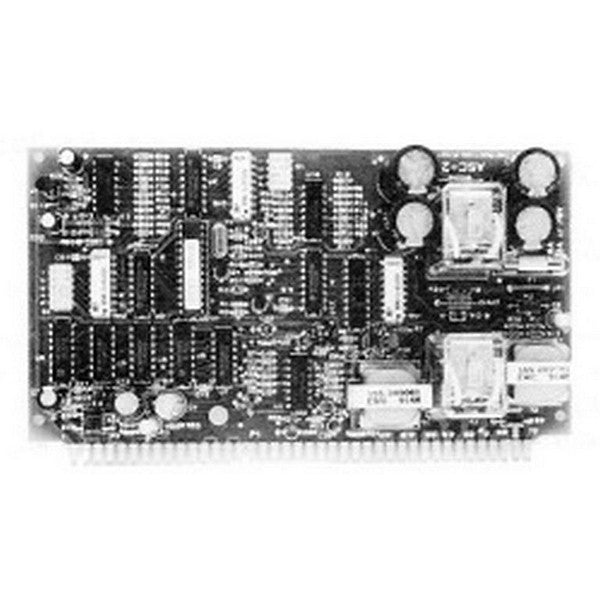

The Siemens Pyro ASC-2 Audio Supervision Card provides intelligent monitoring of amplifier output signals in MXLV intelligent voice communication systems. The card supervises one primary and one backup amplifier, automatically switching to the backup amplifier if the primary unit fails. Multiple ASC-2 cards can share a single backup amplifier, and the card integrates with the Siemens MXL voice system architecture to ensure reliable voice evacuation capability during emergencies. Address assignment and audio riser selection are configured via DIP switches.

Key Features

• Supervises primary and backup amplifier operation
• Automatic failover to backup amplifier on primary failure
• Multiple ASC-2 cards can share single backup amplifier
• Integrates with MXLV voice system platform
• DIP switch S1 for address assignment
• DIP switch S2 for audio riser selection
• Jumpers J1/J2 for backup amplifier configuration
• Supports Style Y and Style Z zone card connections

Technical Specifications

• System: MXLV intelligent voice communication platform
• Supervises: One primary and one backup amplifier
• Configuration: DIP switch selectable address and riser settings
• Connections: To amplifier output, ZC audio card series, speaker zones
• Sub-address: One of eleven available addresses on OCC-1 Output Control Card
• Failover: Automatic switching on primary amplifier failure
• Resistance Specification: Maximum 20 ohms loop resistance per NEC Article 760

Certifications

• UL Listed for Siemens MXLV voice communication systems
• NFPA 72 compliant intelligent voice system component
