Siemens (Pyro) OCC-1-RC

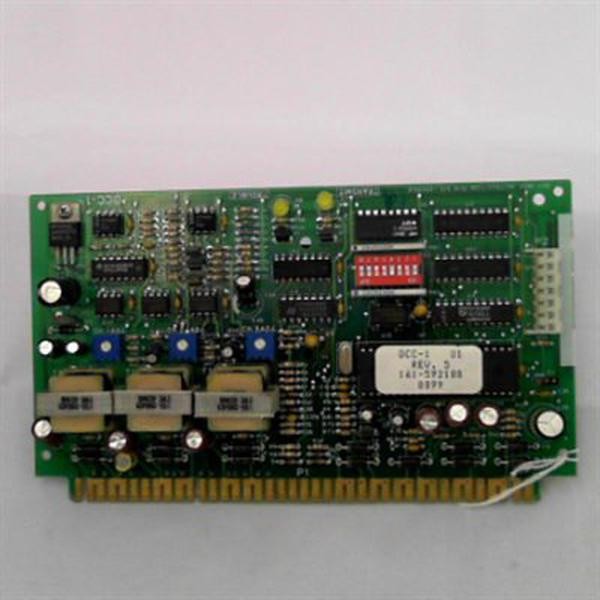

The Siemens Pyro OCC-1 Output Control Card is an MXLV audio output control module that manages voice zone cards and audio supervision functions in Siemens intelligent voice evacuation systems. The card plugs into the OMM-1 or OMM-2 Output Master module and serves as the control backbone for voice system audio zones, supporting multiple ASC-2 audio supervision cards. The OCC-1 provides 24 VDC system power distribution with monitored circuit supervision and maximum 20-ohm loop resistance specification for reliable voice circuit operation.

Key Features

• MXLV audio output control module for voice systems
• Hosts up to 11 ASC-2 audio supervision card sub-addresses
• Plugs into OMM-1 or OMM-2 Output Master modules
• DIP switch S1 address assignment
• 24 VDC power distribution to voice zone circuits
• Circuit supervision with 10K end-of-line resistors (5% tolerance)
• Compatible with PLC-4/PL864 amplifier systems

Technical Specifications

• Power: 24 VDC at 17mA, 5 VDC at 22mA
• Maximum Loop Resistance: 20 ohms for all wiring
• End-of-Line Resistors: 10K ½-watt 5% (P/N 140-820396)
• Sub-addresses: Supports 11 ASC-2 audio supervision cards
• Installation: Plugs into OMM-1 or OMM-2 Output Master module
• Address Matching: DIP switch selectable to match voice panel assignment
• Code Compliance: NEC Article 760 or local building code requirements

Certifications

• UL Listed for Siemens MXLV voice evacuation systems
• NFPA 72 compliant intelligent voice system component
