Siemens (Pyro) PAD-4-9A
Power Supply 9 Amp Pad-4 Kit w/Encl Board 300W
Siemens PAD‑4‑9A 9 Amp NAC Expander Kit
The Siemens PAD‑4‑9A is a complete distributed power supply and notification appliance circuit (NAC) expander, designed to supplement Siemens fire alarm control panels by providing additional 24 V DC power for horns, strobes, and other evacuation devices. With its robust power capacity and fault-tolerant design, it’s ideal for large installations or where extended notification coverage is required.
Key Features:
• High Power Output: Delivers up to 9 A @ 24 VDC for powering NAC wiring and devices.
• Expanded Circuits: Provides four Class B NAC outputs standard, expandable to four Class A circuits using the optional PAD‑4‑CLSA module.
• Auxiliary Power Output: Offers 3 A auxiliary 24 VDC output for powering door holders or other auxiliary devices.
• Isolated Inputs: Two optically isolated NAC inputs from the FACP allow class switching, trouble reporting, and supervisory functionality.
• Integrated Supervision: Monitors AC power, battery charger status, ground fault, output circuit trouble, and reports via Form C trouble contacts.
• Strobe Synchronization: Optional synchronization support ensures uniform flash patterns when adding sync modules.
• Reliable Enclosure: Packaged in a red metal enclosure capable of housing the main board, power supply, and batteries up to 7 Ah or larger with optional kits.
• Seismically Rated: Complies with seismic standards including OSHPD and IBC/IBC-related certifications.
Technical Specifications:
-
Power Capacity: 9 A total NAC output; up to 6 A with FP2011-U1 or full 9 A with FP2012-U1 power supply
-
Auxiliary Power: 3 A @ 24 VDC
-
Inputs: Two NAC inputs, optically isolated
-
Supervisory Outputs: Form C trouble relays for general fault and AC fail
-
Dimensions: Enclosure typically ~24.5″ × 13″ × 16.5″, weight around 21 lbs for full kit

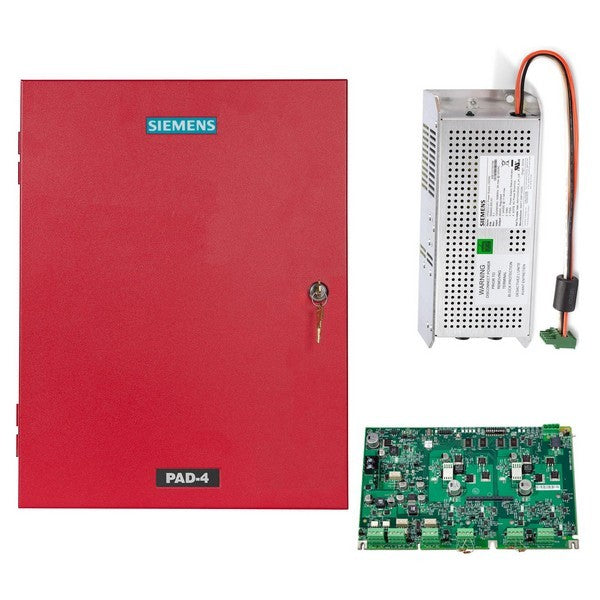

The PAD‑4‑9A kit includes main board, power supply (300 W), chassis, and enclosure board, offering a comprehensive solution to upgrade fire systems with expanded NAC capacity and reliable supervision.
