Siemens (Pyro) TRI-B6M

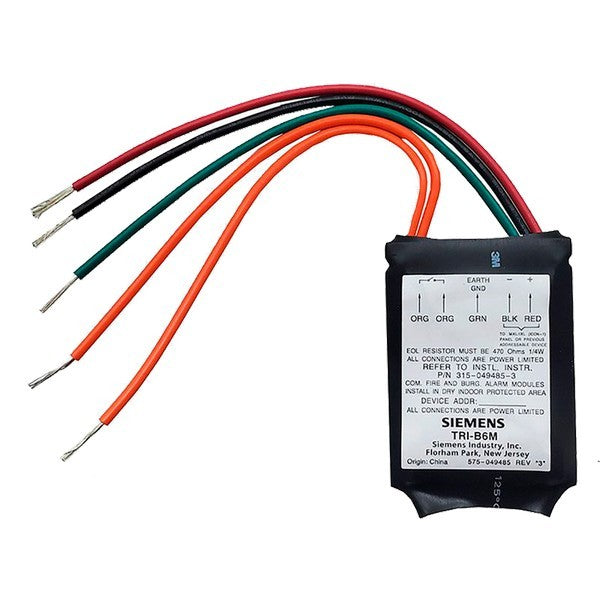

Siemens TRI-B6M Intelligent Interface Module

The Siemens TRI-B6M is an intelligent interface module designed to monitor and supervise a single dry-contact device within Siemens fire alarm systems. It facilitates the integration of conventional devices, such as pull stations or supervisory switches, into addressable systems, ensuring precise monitoring and communication with the fire alarm control panel (FACP).

Key Features:

• Contact Monitoring: Capable of supervising a normally open (N.O.) or normally closed (N.C.) dry contact, allowing for versatile integration of different devices.

• Intelligent Addressing: Utilizes microcomputer-chip technology for reliable communication with the FACP, ensuring accurate status reporting.

• Compact Design: Its small size allows for mounting in a single-gang box behind equipment, simplifying installation.

• Electronic Address Programming: Supports electronic address programming using the SensorLINK programmer/tester (FPI-32 upgrade kit), eliminating the need for mechanical addressing mechanisms like DIP switches or rotary dials.

Specifications:

• Operating Voltage: 16 to 30 VDC

• Current Draw:

• Supervisory State: 1.8 mA

• Active State: 5 mA at 5 VDC; 6 mA at 24 VDC

• Operating Temperature Range: 32°F to 120°F (0°C to 49°C)

• Humidity Range: Up to 93% relative humidity, non-condensing

• Mounting: Compatible with standard single-gang electrical boxes; mounts directly into a single-gang switchbox.

The TRI-B6M module is suitable for applications requiring the monitoring of a single dry-contact device, enhancing the flexibility and functionality of Siemens fire alarm systems. Its intelligent design and compact features make it a reliable choice for integrating conventional devices into addressable configurations.
