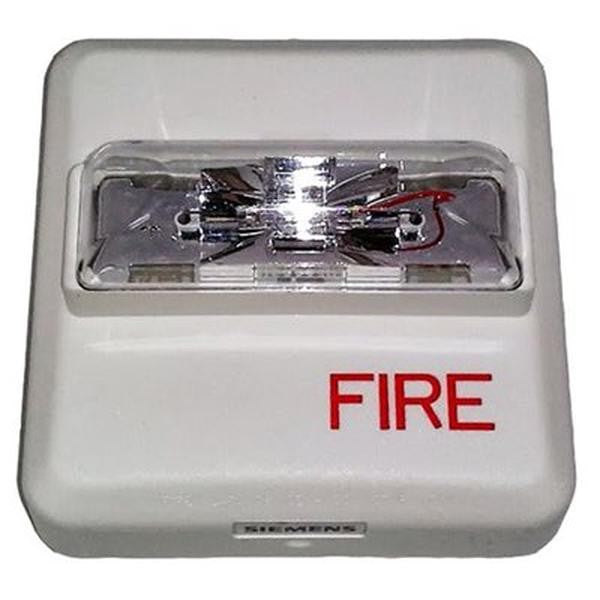

Siemens (Pyro) ZR-MC-W

Key Features

• Multi-candela wall-mount strobe for flexible zone coverage
• White housing for aesthetic interior installations
• One flash per second rate for NFPA 72 compliance
• Universal back plate compatible with multiple box types
• Synchronization with Siemens DSC sync modules and control panels
• Compatible with PAD-3 and PAD-4 NAC Extenders
• Suitable for hearing-impaired occupant notification

Technical Specifications

• Type: Wall-mount multi-candela Z Strobe
• Color: White housing
• Operating Voltage: 24VDC (16.0 to 33.0 VDC range)
• Candela Settings: 15, 30, 75, 110 cd (wall models); 135, 185 cd available
• Flash Rate: 1 flash per second
• Compatible Panels: Siemens 50-point, 252-point, 504-point addressable FACPs; FireFinder XLS; MXL FACPs
• Mounting: Single-gang, double-gang, 4-inch-square, 4"-octal, or 3-1/2" octal backbox
• Synchronization: Works with DSC sync modules, PAD-3, PAD-4 NAC Extenders

Certifications

• NFPA 72 Compliant
• UL Listed visual notification appliance
• ADA Accessibility Standard compliant
