Silent Knight 5210-RC

Silent Knight 5210-RC

Silent Knight 5210-RC

RECON-Adds 8 Zones To The 5207

Vendor: Silent Knight

Type: Fire Alarm > Accessories

SKU: SK-F1P1-5222-RC

$689.09
$689.09
Shipping calculated at checkout.

Core Charge $325

Eligible for credit if core is returned within 30 days of order A core charge is a fee you pay when buying a part, that will be returned to you when you send the old part you’re replacing back. In other words, it’s a monetary incentive to get your old part so that we can recondition and continue to offer this part to future customers.

Out of stock; call for lead time

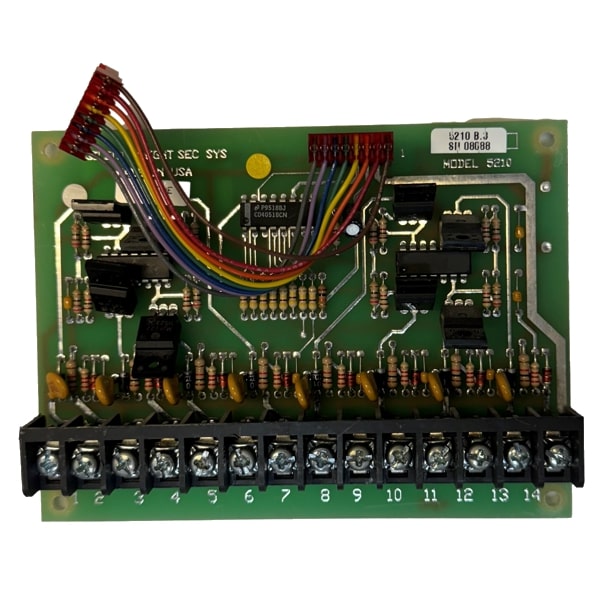

The Silent Knight 5210 is a zone expander module that extends the capacity of the SK-5207 8-zone fire alarm control panel by adding eight Class B initiating device input circuits. The compact 10x7x3-inch module connects directly to the control panel with a standard cable connection and supports both 2-wire and 4-wire smoke detectors, enabling flexible multi-family or large-area fire detection configurations without requiring additional control panels.

Key Features

  • Eight additional Class B initiating device circuits for SK-5207 panel expansion
  • Supports both 2-wire and 4-wire smoke detectors
  • Direct cable connection to SK-5207 connector P2
  • Uses standard 4.7k end-of-line resistors for Class B loops
  • Compact DIN-mountable or chassis-mount installation
  • Doubles detection capacity of base SK-5207 system

Technical Specifications

  • Input Circuits: 8 Class B initiating device circuits
  • Detector Type: 2-wire and 4-wire smoke detector compatible
  • Termination: 4.7k end-of-line resistor per Class B loop
  • Connection: Hardwired to SK-5207 panel connector P2
  • Power: Supplied from SK-5207 control panel
  • Installation: Panel power must be OFF during connection
  • Dimensions: Approximately 10 inches x 7 inches x 3 inches

Certifications

  • UL Listed with SK-5207 fire alarm control panel
  • NFPA 72 compliant conventional fire alarm system expansion module
