Silent Knight 5495-RC
RECON-Module Distributed Power Module 6 Amps
+$100 Refundable core deposit
Core charge ($100)
Eligible for credit if core is returned within 30 days of order

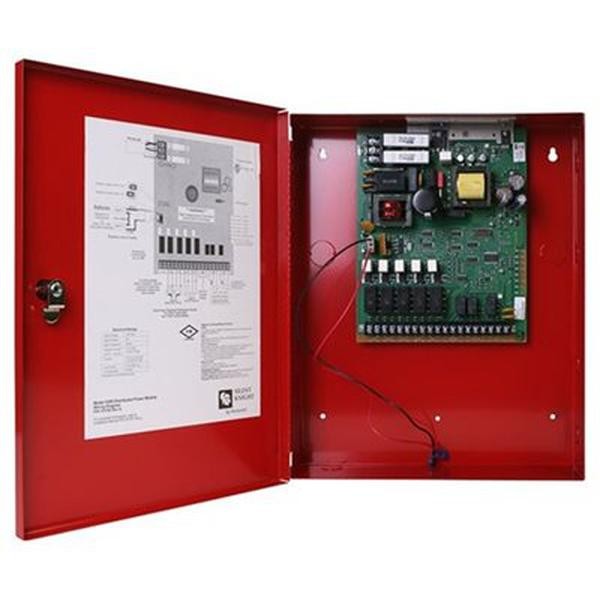

The Silent Knight 5495 is a distributed power module designed to expand the power capabilities of fire alarm systems. It provides up to 6 amps of filtered, 24-volt DC power, enabling the connection and distribution of power to numerous devices beyond the capacity of the main control panel.
Key Features:
• Power Output: Delivers up to 6 amps of filtered, 24V DC power for notification appliances and auxiliary devices.
• AC Power Connection: Includes its own AC power connection, battery charging circuit, and battery connections.
• Signal Inputs: Equipped with two optically isolated signaling inputs for communication with the main control panel.
• Output Configurations: Features four power-limited notification appliance circuits (NACs) that can be configured in various combinations of Class A and Class B circuits.
• Auxiliary Power: Provides a dedicated, power-limited, auxiliary output that can be configured as non-resettable or to switch off during AC power failure to conserve battery standby power.
• Trouble Relay: Includes a Form C trouble relay that de-energizes for any trouble situation.
• Earth Fault Detection: Monitors for earth faults to the system power or system ground, de-energizing the trouble relay and input supervision relays upon detection.
• Synchronization: Supports synchronization of appliances from manufacturers such as Amseco, Faraday, Gentex, System Sensor, and Wheelock.
