Silent Knight 5496

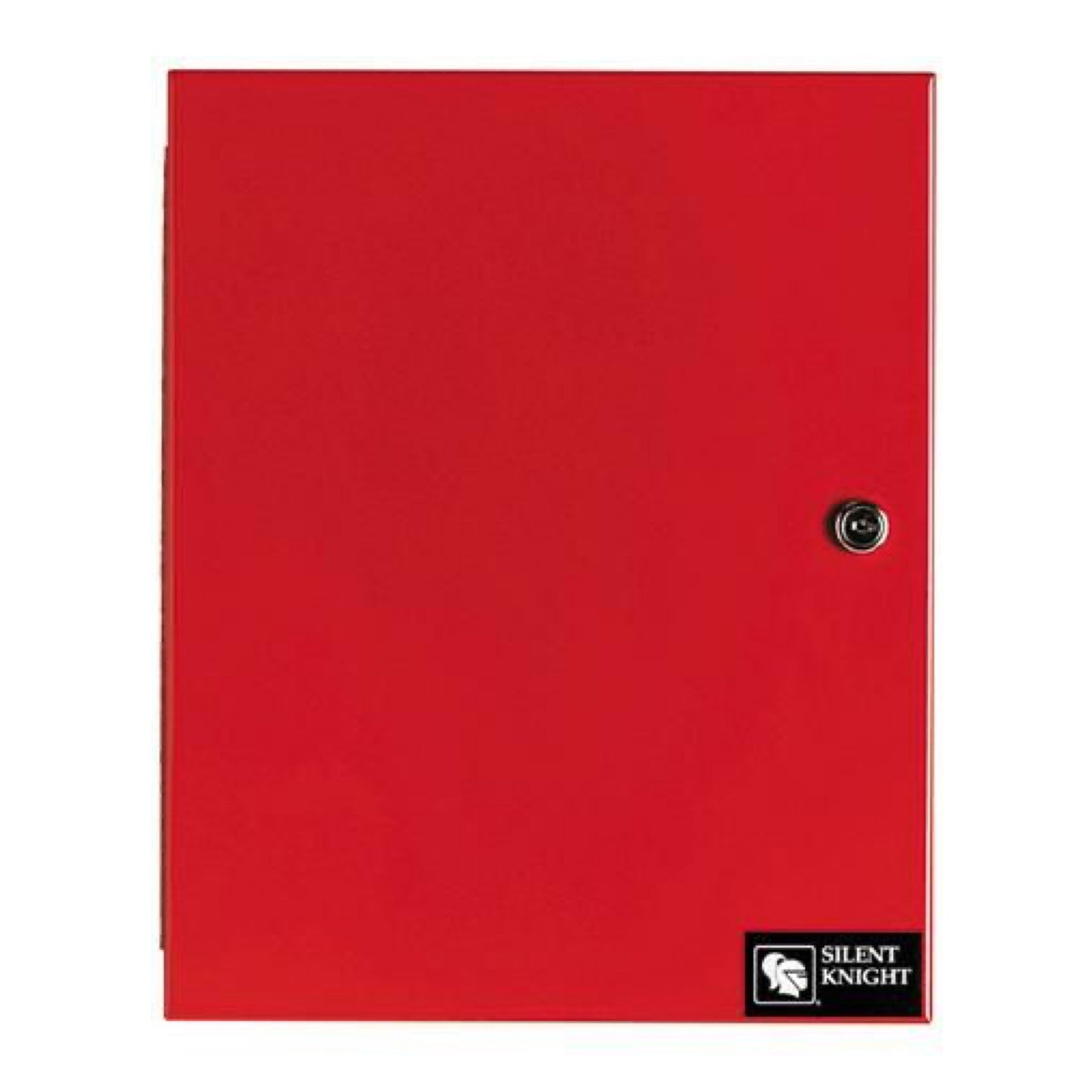

The Silent Knight 5496 is an intelligent 6-amp distributed power module that adds notification appliance circuit (NAC) capacity to a Silent Knight fire alarm control panel, communicating back to the panel over 4-wire SBUS wiring that can run up to 6,000 feet. It supplies its own switch-mode 120VAC-to-24VDC power conversion, battery charging, and backup battery supervision, so notification power can be distributed to remote locations in a building without running long NAC wire runs back to the main panel.

Key Features

• Four power-limited outputs, individually programmable as NACs or as auxiliary power (constant, resettable, or door holder)
• Built-in ANSI cadence generation and synchronization for compatible notification appliances from System Sensor, Gentex, AMSECO, and Wheelock
• Switch-mode power supply design rated up to 50% more efficient than comparable linear power supplies
• Communicates to the host panel over 4-wire SBUS, supporting wire runs up to 6,000 ft

Technical Specifications

• Input: 120VAC; Output: 24VDC filtered, 6A total capacity, 3A max per output circuit
• Supports standby batteries up to 35Ah charging capacity
• Enclosure dimensions: 12.25 in. W x 3 in. D x 16 in. H

Certifications

• UL Listed for fire protective signaling use with Silent Knight fire alarm control panels
