Silent Knight 5496RB-RC

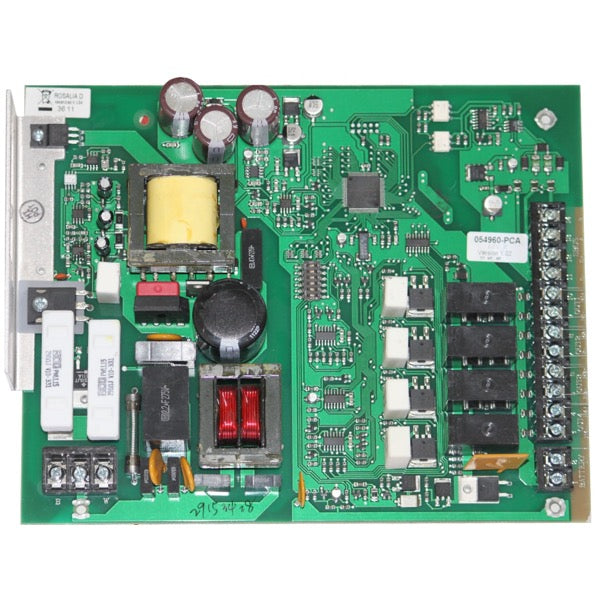

The Silent Knight 5496RB is an intelligent 6-amp notification power expander board with its own AC power connection, filtered 24 VDC outputs, and an onboard battery charger, designed to add supervised notification power to an IntelliKnight system such as the Model 5808 panel. It communicates back to the host panel over a 4-wire SBUS connection that can run up to 6,000 feet.

Key Features

• Four power-limited outputs, individually programmable as NACs or as auxiliary power (constant, resettable, or door holder)
• Built-in ANSI cadence generation and appliance synchronization
• Optically isolated for ground-loop isolation and transient protection
• DIP-switch addressing sets the module's SBUS address from 1 to 31

Technical Specifications

• Input: 120 VAC; Output: filtered 24 VDC, 6A total, 3A max per circuit
• Supports batteries up to 35 Ah charging capacity
• SBUS communication wire run: up to 6,000 ft

Certifications

• Designed for use with Silent Knight IntelliKnight fire alarm control panels
