Silent Knight 5824

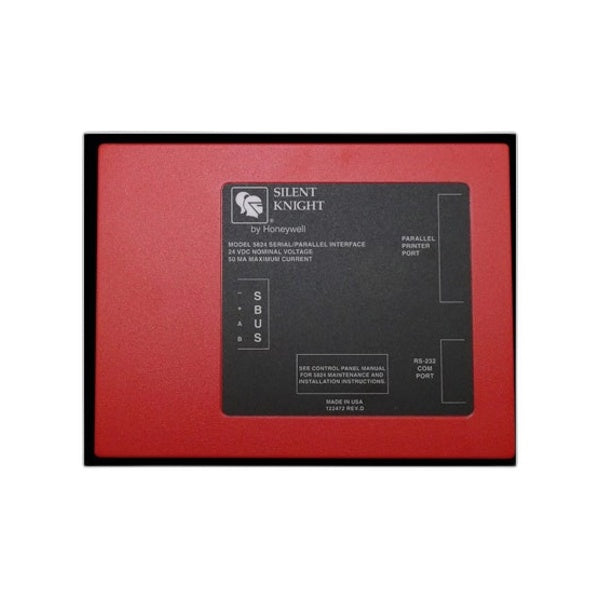

The Silent Knight 5824 is a Serial/Parallel Printer Interface Module that adds real-time event logging and data reporting capabilities to Silent Knight intelligent addressable fire alarm systems. The module provides both parallel and RS-232 serial ports for connection of standard computer printers, enabling printout of alarm events, detector status, and complete event history. System power monitoring ensures trouble indication if paper runs low, and the module is UL-listed for use with the Okidata Microline 320 parallel printer and compatible printer models.

Key Features

• Dual printer interface: one parallel port and one RS-232 serial port
• Real-time event logging of all system alarms and supervisory conditions
• Detector status reports and complete event history printing
• Out-of-paper condition detection with system trouble indication
• Gateway protocol interface compatible with building control systems
• Wall-mountable plastic enclosure with compact design
• Compatible with Silent Knight 5808 and 5820XL series panels

Technical Specifications

• Ports: One parallel port (Okidata Microline 320 compatible) and one RS-232 serial port
• Data Format: Real-time event log, detector status, event history printout
• Power: Draws worst-case 0.040 amps
• Mounting: Wall-mount enclosure (standard form factor)
• Printer Compatibility: Okidata Microline 320 parallel printer and compatible models
• Interface Protocol: Gateway protocol for building management system integration

Certifications

• UL Listed printer interface module for Silent Knight fire alarm systems
• NFPA 72 compliant intelligent fire alarm accessory
