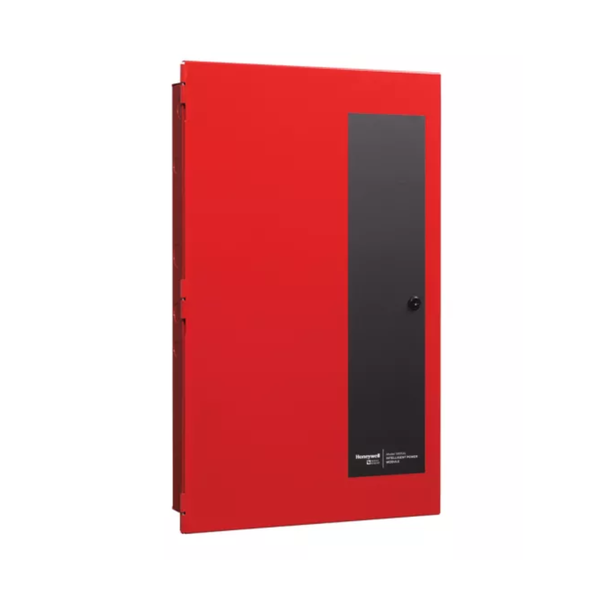

Silent Knight 5895XL

The Silent Knight 5895XL is an intelligent power module that adds independent 6A notification power and extended SBUS communication reach to a Silent Knight addressable fire alarm control panel. It connects to its own AC input with an integrated charging circuit and battery backup terminals, so it can carry notification and auxiliary loads without drawing down the main panel's power supply.

Key Features

• Six individually programmable 3A Flexput circuits (NAC, auxiliary power, or initiating input)
• Two 2.5A, 24VDC Form C programmable relays for building control tasks
• Integrated SBUS repeater extends communication up to 6,000 feet with Class A support
• Internal mounting space for two 5815XL SLC expander cards
• Factory-synced timing for cross-brand compatibility with AMSECO, Gentex, Faraday, System Sensor, and Wheelock notification appliances

Technical Specifications

• Notification Power: Independent 6A, AC-powered with battery backup
• Flexput Circuits: Six, each individually programmable, 3A
• Relays: Two Form C, 2.5A at 24VDC
• SBUS Repeater Range: Up to 6,000 ft, Class A capable

Certifications

• UL Listed for commercial fire life-safety installations
