Silent Knight IDP-CONTROL-RC
Silent Knight IDP-CONTROL-RC
Out of stock; call for lead time

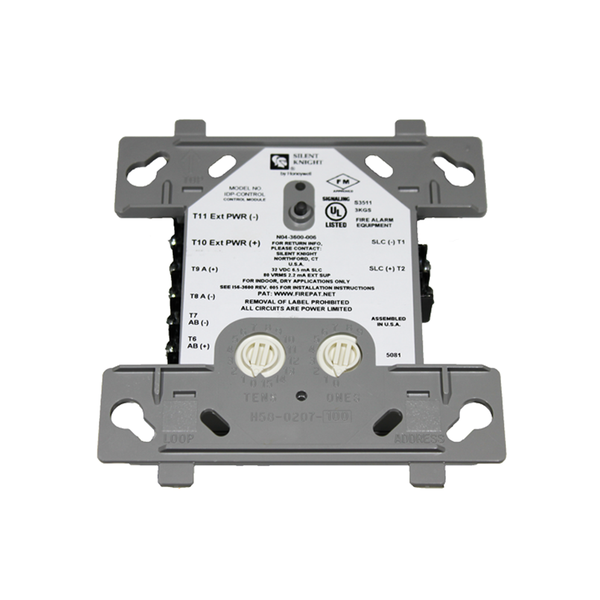

The Silent Knight IDP-CONTROL is an addressable control module for Silent Knight IFP-series intelligent fire alarm control panels, giving one signaling-line-circuit (SLC) address the ability to supervise wiring to a notification load — such as bells, horns, or strobes — that draws its power from an external power supply rather than the SLC loop itself. A panel-controlled LED, visible through the module's cover plate, flashes green in normal condition and lights solid red in alarm.
Key Features
- Supervises field wiring to externally-powered notification loads (bells, horns, strobes)
- Panel-controlled status LED: flashing green (normal), solid red (alarm)
- Rotary switches set the SLC address in the field
- Supports both Class B (Style Y) and Class A (Style Z) circuit wiring
Technical Specifications
- Operating voltage: 15-32 VDC
- Standby/alarm current draw: 350 µA
- Mounting: standard 4" square electrical box, minimum 2-1/8" depth
- Compatibility: Silent Knight IFP-series intelligent addressable fire alarm control panels
Certifications
- UL Listed addressable control module for use on UL-listed Silent Knight fire alarm systems
