Silent Knight IDP-HEAT-ROR-W
Silent Knight IDP-HEAT-ROR-W
In stock!

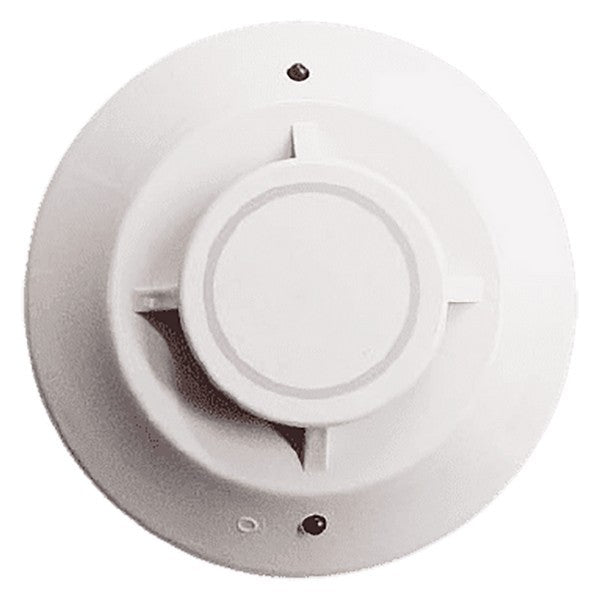

The Silent Knight IDP-HEAT-ROR-W is a low-profile intelligent addressable heat detector combining a 135°F fixed-temperature element with rate-of-rise detection that trips on roughly 15°F-per-minute temperature increases. Advanced thermistor-based sensing gives a fast response, rotary decimal switches set the point address for FlashScan panels, and two bi-color LEDs give 360° visibility - blinking green in normal operation and going steady red in alarm.
Key Features
- Combination fixed-temperature (135°F) and rate-of-rise (15°F/min) heat detection
- Thermistor-based sensing for fast response
- 360° visibility via two bi-color LEDs
- Well suited to kitchens, warehouses, garages, and other areas unsuitable for smoke detectors
Technical Specifications
- Power: 15 to 32 VDC from SLC
- Standby current: 200 µA at 24VDC (green LED enabled)
- Maximum current: 4.5 mA at 24VDC (amber LED enabled)
- Protocol: FlashScan, rotary decimal addressing
Certifications
- UL Listed intelligent addressable heat detector
