Silent Knight IDP-PHOTO-R-W
Silent Knight IDP-PHOTO-R-W
Only 4 left!

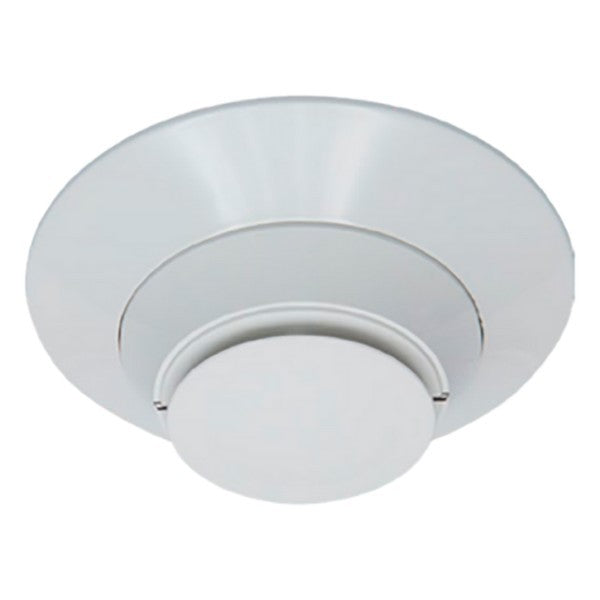

The Silent Knight IDP-PHOTO-R-W is an intelligent, addressable plug-in photoelectric smoke detector in white with remote test capability, communicating over the FlashScan protocol to Silent Knight control panels. Its optical sensing chamber is engineered to respond to smoke from a wide range of combustion sources, and sensitivity is continuously monitored and reported back to the panel rather than fixed at installation, which lets the system flag chamber contamination or drift over time. Two bi-color LEDs give a 360-degree viewing angle, blinking green in normal condition and turning steady red in alarm.
Key Features
- Remote test capability, testable from the panel without physical access to the detector
- Continuously monitored, panel-reported sensitivity (drift compensation)
- Rotary decimal addressing for point ID location
- 360° viewing dual bi-color LED indicators
- Compatible with System Sensor DNR/DNRW duct detector housings for duct applications
Technical Specifications
- Protocol: FlashScan
- SLC Voltage: 15-32 VDC peak
- Standby Current: 200µA max average @ 24VDC (LED enabled)
- Alarm Current: 4.5mA max @ 24VDC
Certifications
- UL Listed intelligent photoelectric smoke detector
