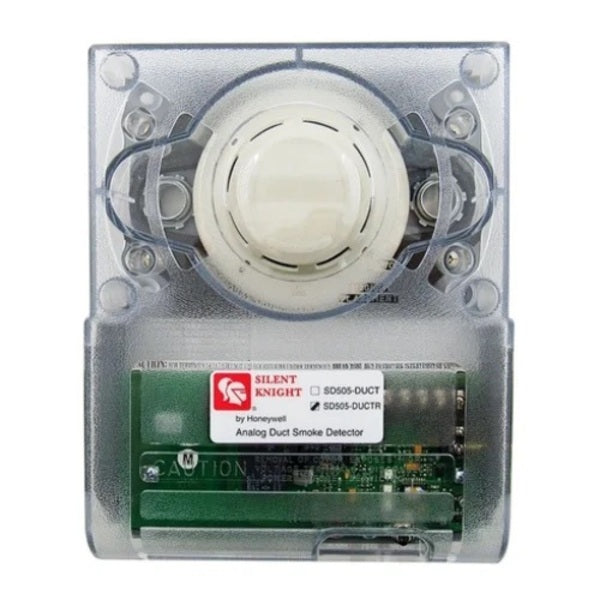

Silent Knight SD505-DUCT-RC
Silent Knight SD505-DUCT-RC
RECON-DUCT HOUSING W/SD505-APS SMOKE DETEC
Regular price
$768.99
Sale price
$768.99
Regular price
Shipping calculated at checkout.
Out of stock; call for lead time
The Silent Knight SD505-DUCT is an addressable duct smoke detector built around the SD505-APS photoelectric smoke sensor, used to monitor smoke and products of combustion in the moving air of HVAC air handling systems and to help shut down fans and blowers when smoke is detected.
Key Features
- Addressable duct-mounted photoelectric smoke detector for HVAC ductwork
- Communicates alarm condition to the IntelliKnight control panel, which can shut down fans, blowers, and other equipment per programming
- LED alarm indication and communication on the sensor head
- Rugged steel backbox with clear plastic cover; no screens or filters to clean
- Compatible with IntelliKnight 5700, 5808, 5820XL, and 5820XL-EVS panels programmed for Hochiki protocol
Technical Specifications
- Sensor: SD505-APS photoelectric smoke sensor
- Application: HVAC duct-mounted smoke detection
- Compatible panels: IntelliKnight 5700, 5808, 5820XL, 5820XL-EVS (Hochiki protocol)
Certifications
- UL Listed
- Complies with NFPA 72 and NFPA 101
- CSFM Listed
- MEA Approved (429-92-E, Vol 9)
