Silent Knight SD505-HEAT-RC
Silent Knight SD505-HEAT-RC
Only 4 left!

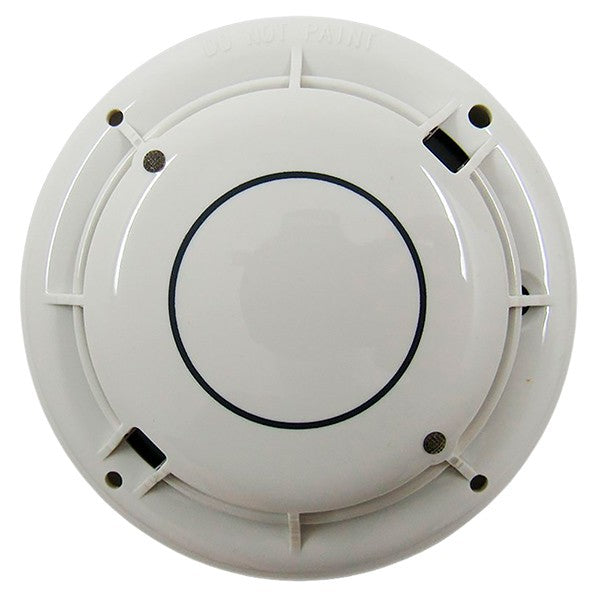

The Silent Knight SD505-HEAT-RC is a reconditioned, addressable fixed-temperature heat detector designed for spaces where smoke detectors would be prone to nuisance alarms -- kitchens, mechanical rooms, and other areas with steam, cooking fumes, or dust. It reports over a digital communication protocol to the panel rather than relying on a purely mechanical trip, and its actual alarm trip point (135°F to 150°F) is set by the fire alarm control panel program rather than fixed in the detector head, giving installers flexibility across applications without stocking multiple temperature-rated models.
Key Features
- Fixed-temperature detection, panel-programmable trip point
- Low-profile design, 2" height including base
- Digital communication protocol for accurate temperature reporting
- Compatible with SD505-6AB, -6IB, -6RB, and -6SB base variants (standard, isolator, relay, sounder)
Technical Specifications
- Detection Temperature Range: 135°F-150°F (57°C-65°C)
- Ambient Operating Temperature: 32°F-120°F (0°C-49°C)
- Electrical: 17-41 VDC, 0.55mA standby/alarm
- Diameter: 3-15/16"
- Compatible Panels: Silent Knight IntelliKnight series
Certifications
- UL Listed addressable heat detector
