Silent Knight SK-MON-10
Silent Knight SK-MON-10
Only 1 left!

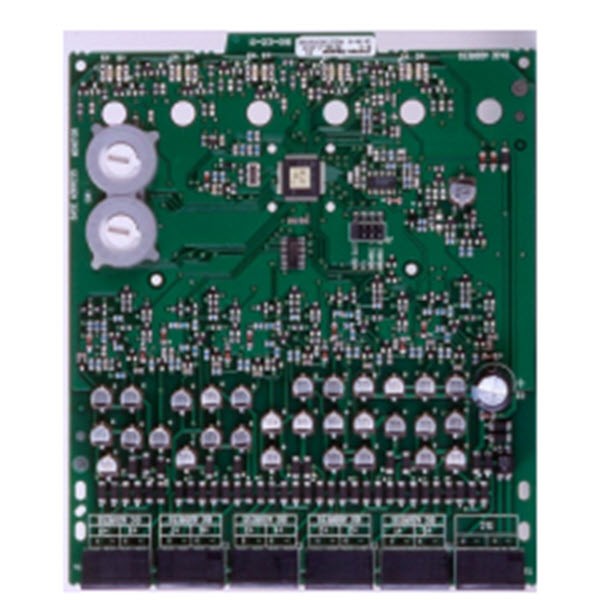

The Silent Knight SK-MON-10 is an intelligent ten-input monitor module that lets a single SLC address supervise up to ten separate contact-closure devices at once, instead of using one addressable module per device. It supports ten Class B supervised inputs, or five Class A inputs when fault-tolerant wiring is required, and can also monitor conventional 4-wire smoke detectors for both alarm and trouble conditions. Each input has its own LED indicator, and rotary address switches speed up field installation without a separate programmer.
Key Features
- Ten Class B or five Class A supervised inputs from a single module
- Per-input LED status indicators
- Rotary address switches for fast field installation
- Removable 18 AWG plug-in terminal blocks
- Up to two modules can share an IDP-ACB accessory cabinet with a mounting plate for status visibility
Technical Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: 3.5mA
- Wire Gauge: 12-18 AWG
- Dimensions: 5.8" W x 1.25" D x 6.8" H (with mounting hardware); Weight: 6.3 oz
Certifications
- UL Listed addressable monitor module
