Simplex 2080-9067

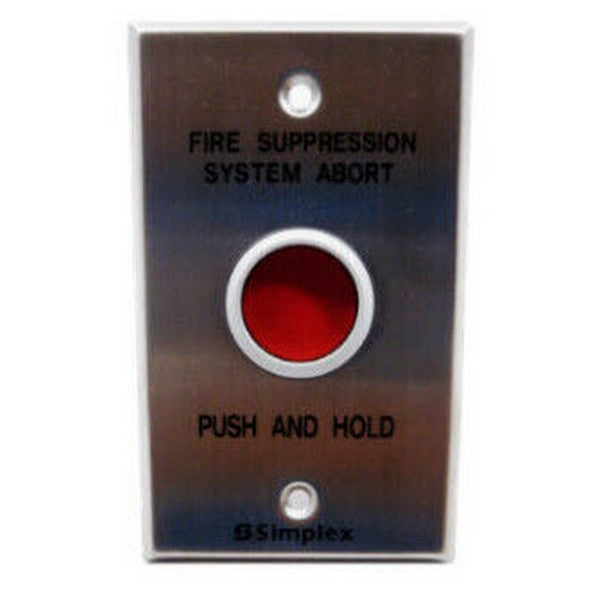

Simplex 2080-9067 Fire Suppression System Abort Switch

Flush-mount abort switch with current-limited operation designed for 4004R Series suppression release panels. Provides manual fire suppression system release abort request with integrated 1.2 kΩ, 1W resistor for current-limited circuit operation.

Key Features:

• Current Limited Operation: Built-in 1.2 kΩ, 1W resistor enables current-limited circuit protection for safe fire suppression system integration

• Flush-Mount Configuration: Single-gang size with 3-position contact block housing and one installed contact block

• Protected Activation: Protruding collar prevents accidental switch actuation; removable for custom installations

• Dual Wire Connections: Terminal blocks for first connection (18-14 AWG) plus 18 AWG wire lead for second connection

• Contact Specifications: Silver contacts rated 2 A resistive at 30 VDC with 1 N.O. and 1 N.C.

• 4004R Compatible: UL and CSFM listed; MEA (NYC) accepted for suppression system compatibility
