Simplex 2080-9069

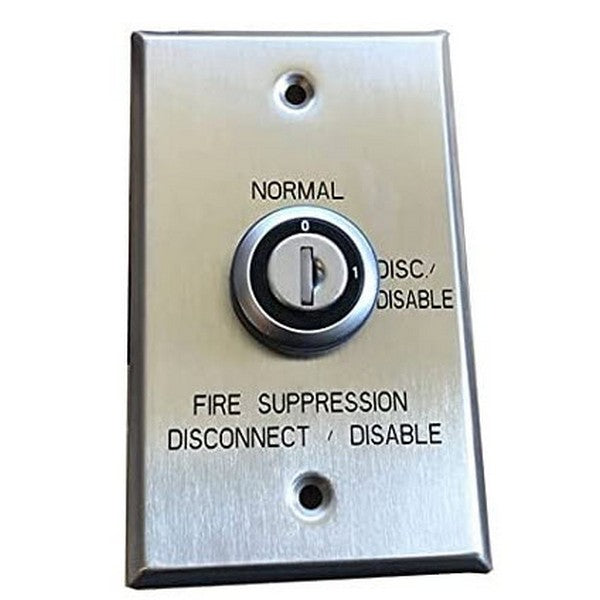

The Simplex 2080-9069 is a flush-mount maintenance disconnect switch, without a disconnect indicator lamp, used to safely service a fire suppression Releasing Appliance Circuit (RAC) without leaving the circuit in a fault state. Switching to the disabled position opens the connection to the output and places a 16.2k ohm resistor across the input circuit, which can be removed if the switch is retrofitted into an existing circuit.

Key Features

• UL, ULC, and CSFM listed flush-mount, single-gang maintenance switch
• Disabled position substitutes a 16.2k ohm end-of-line resistor to keep the input circuit supervised during service
• Ships with a 3-position contact block housing and one contact block installed

Technical Specifications

• Mounting: Flush, single-gang
• Disabled-state input resistor: 16.2k ohms (removable)

Certifications

• UL, ULC, and CSFM Listed for fire suppression Releasing Appliance Circuit servicing
