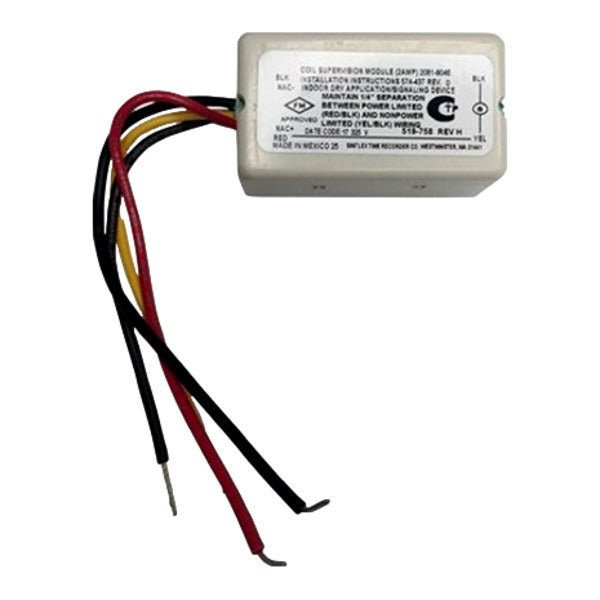

Simplex 2081-9046

The Simplex 2081-9046 is a 2-amp coil supervisory module for Simplex fire alarm suppression release circuits, monitoring actuator coil integrity and providing controlled actuation during alarms with continuous fault reporting. This module integrates between the releasing control panel and solenoid valve actuators for clean-agent, deluge, and preaction sprinkler system applications.

Key Features

• 2-amp rated coil supervisory module for release circuits
• Monitors actuator coil circuits for opens and shorts
• Provides controlled actuation on alarm condition
• Continuous integrity monitoring by host releasing panel
• Trouble reporting for circuit faults
• Supports typical agent release and valve solenoid inrush/holding current

Technical Specifications

• Vendor: Simplex
• Part Number: 2081-9046
• Type: Coil Supervisory Module
• Current Rating: 2 amperes
• Function: Release circuit supervision and control
• Compatible Systems: Simplex 4004R, Simplex 4100ES (release-rated software)
• Dimensions: 4.8 × 2.2 × 2.2 inches
• Weight: 0.2 lbs

Certifications

• Listed fire alarm suppression release component
• Compatible with UL-listed release platforms
• Supports clean-agent, deluge, and preaction system certification requirements
