Simplex 2098-9637-RC

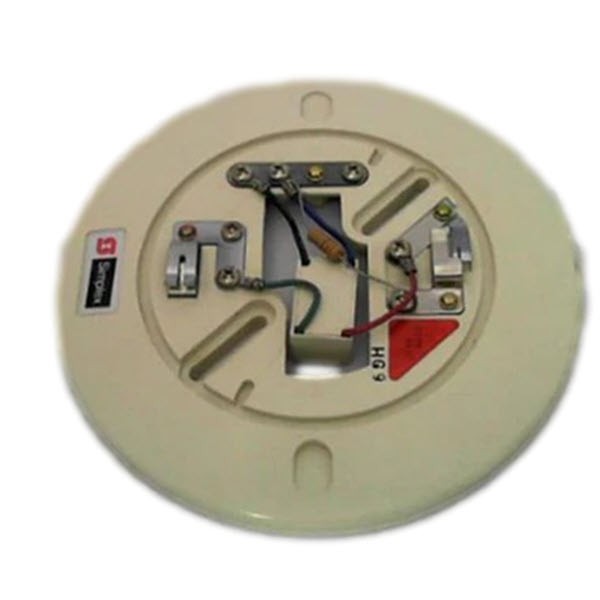

The Simplex 2098-9637 is a 2-wire detector base that mounts to a standard 4-inch electrical box and provides the wiring interface and relay contacts for Simplex 2098-series smoke detector heads. The head itself snaps onto this base, so the base stays in place on the ceiling while the sensing head above it can be swapped during service or replacement.

Key Features

• 2-wire mounting base for Simplex 2098-series smoke detector heads
• Fits a standard 4-inch electrical box
• Includes relay contacts for system integration

Technical Specifications

• Wiring: 2-wire
• Mounting: Standard 4 in electrical box
• Compatible Heads: Simplex 2098-9201, 2098-9202, 2098-9203, 2098-9208, 2098-9544, 2098-9576
