Simplex 2099-9101

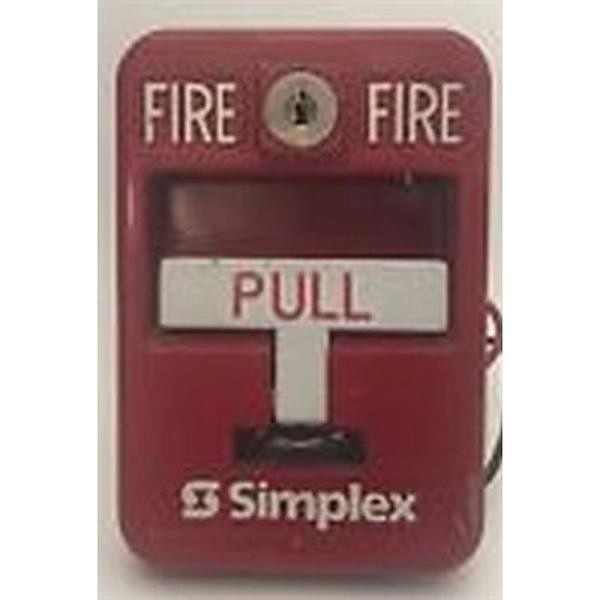

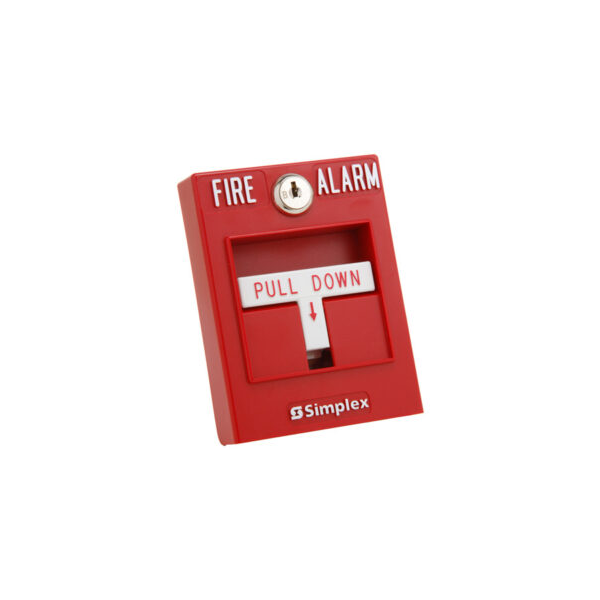

The Simplex 2099-9101 is a non-coded, non-addressable single-action manual fire alarm pull station designed for use with Simplex 4001, 4002, 4004, and 4005 fire alarm control panels. A firm downward pull activates the alarm switch with visible mechanical feedback, latching the lever in the extended alarm position until reset with the proper key.

Key Features

• Single-action pull operation with positive mechanical feedback and latching indication
• Internal break-rod suppresses false activations without interfering with minimum pull force
• Tamper-resistant keyed reset (keyed same as Simplex fire alarm cabinets)
• ADA-compliant design with screw terminal wiring connections
• Two normally open (N.O.) annunciator contact sets for alarm indication

Technical Specifications

• Operation: Single-action pull activation
• Contact Type: 2 N.O. alarm + annunciator N.O. circuits
• Dimensions: 5" H × 3.75" W × 1" D
• Housing Color: Red/White
• Operating Temperature: 32–120°F
• Humidity Tolerance: 93% RH @ 100°F
• Wiring Terminals: 18–14 AWG screw terminals
• Installation Height: 42-48 inches above floor level (NFPA 72 compliant)

Certifications

• UL 38 Listed manual fire alarm station
• ULC, FM, CSFM, MEA listed
• NFPA 72 compliant
