Simplex 2099-9144

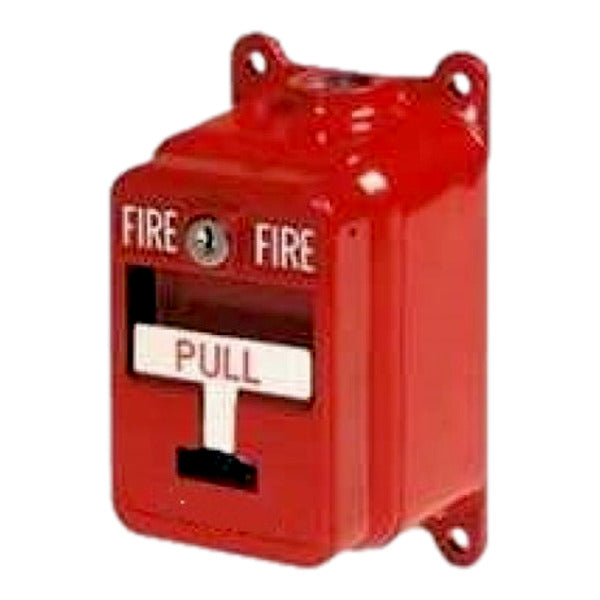

Simplex 2099-9144 Explosion-Proof Weather-Proof Pull Station

Cast zinc manual alarm pull station with integrated enclosure rated for hazardous and outdoor environments. Rugged non-coded design with DPDT switching contacts, UL listed and FM/CSFM approved for classified hazardous locations including Class I, II, and III applications.

Key Features:

• Hazardous Location Rating: NEMA 4X rated; approved for Class I Groups B, C, and D; Class II Groups E, F, and G; Class III Groups E, F, and G; includes UL Marine approval for corrosive environments

• Contact Configuration: DPDT (Double Pole Double Throw) with 1A @ 30VDC resistive or 10A @ 120VAC resistive contact ratings

• Temperature Range: Operates reliably from -67°F to 302°F (-55°C to 150°C), suitable for extreme outdoor applications

• Housing: Cast aluminum construction with integrated enclosure; cast zinc levers and handles; includes break rod for vandalism deterrence (optional use)

• Operation: Single action pull operation with mechanical latching; reset via key-lockable enclosure using Simplex B-key

• Wiring: Screw terminal connections accepting #22 to 12 AWG field wiring

• Certifications: UL and C-UL listed, FM approved, CSFM listed, MEA (NYC) accepted
