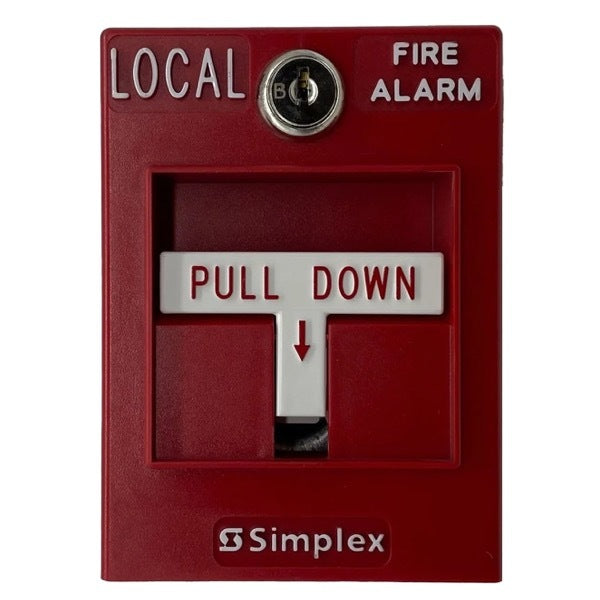

Simplex 2099-9755

The Simplex 2099-9755 is a single-action, non-coded manual pull station designed for conventional fire alarm systems. Featuring high-impact polycarbonate construction with ADA-compliant operation, this lever-activated station provides clear visual alarm indication through its extended pull lever position and includes an optional break rod for additional tamper evidence.

Key Features

• Single-action, non-coded manual pull operation
• ADA-compliant activation mechanism
• High-impact polycarbonate construction
• Tamper-resistant reset key lock (B-style key)
• Optional break-rod tamper evidence feature
• Visual alarm indication with extended lever
• Screw terminal wiring connections

Technical Specifications

• Type: Non-Coded, Non-Addressable conventional manual station
• Mounting: Semi-flush (2 1/5" deep switch box) or surface mount (Wiremold V5744S box)
• Dimensions (surface mount): 4 5/8" H x 2 7/8" W x 2 1/4" D
• Contact: SPST normally open
• Reset: Tamper-resistant key lock (B-key, sold separately)
• Compatible with Simplex conventional fire alarm systems

Certifications

• UL 38 Listed manual fire alarm pull station
