Simplex 4007-9101

Simplex 4007-9101 4007ES Hybrid Fire Alarm Control Panel

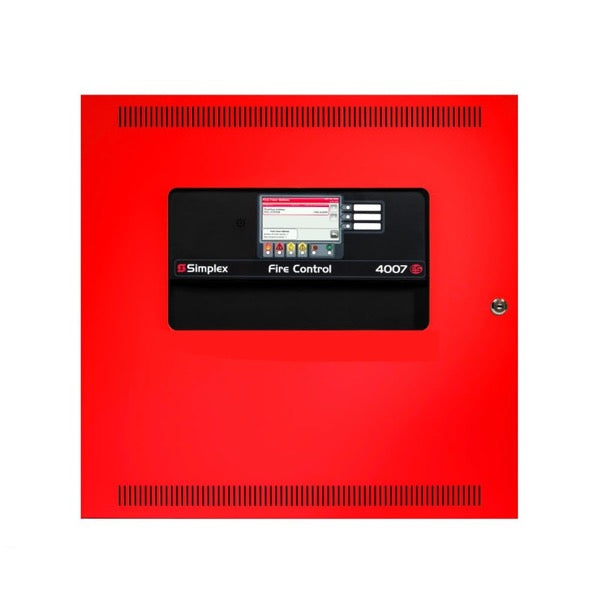

The Simplex 4007-9101 is a red 4007ES Hybrid intelligent fire alarm control panel featuring one IDNet 2 addressable signaling line circuit supporting up to 100 addressable points (expandable to 250), four conventional Notification Appliance Circuits (NACs), and an included 8-point zone/relay module for conventional initiating devices or relay control. It accommodates both intelligent (addressable) and conventional detection devices on the same system.

Key Features:

• Hybrid Detection Support: Combines addressable IDNet 2 device communication with conventional initiating device circuits on one panel.

• Expandable Addressable Capacity: Standard SLC supports up to 100 addressable points, expandable to 250 with additional loop expansion modules.

• Conventional Notification: Four onboard 3 A conventional NACs for horns, strobes, and other notification appliances.

• Color Touchscreen Interface: 4.3-inch color touchscreen provides intuitive access to system status, response actions, and configuration.

• Stand-Alone or Networked Operation: Can be configured as a stand-alone fire control panel or as part of a networked system.
