Simplex 4007-9201

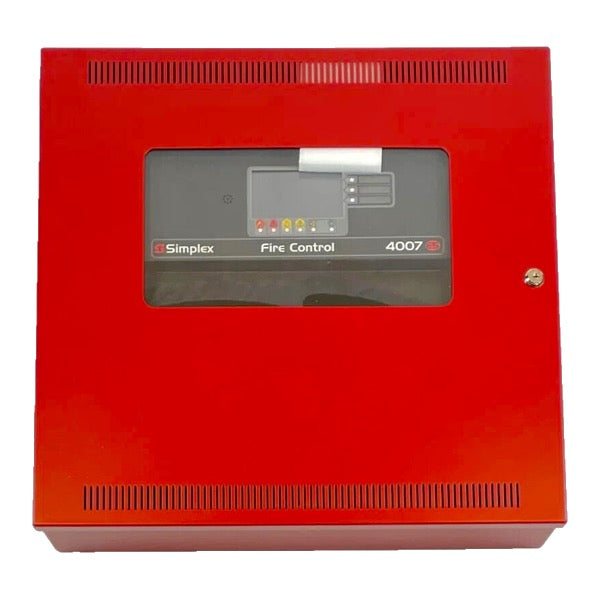

Simplex 4007-9201 4007ES Fire Alarm Control Panel

The Simplex 4007-9201 is a 4007ES fire alarm control unit configured for IDNAC addressable notification, in a red cabinet. It combines an electrically isolated IDNet 2 addressable initiating device signaling line circuit (SLC) with a 3 A, Class B IDNAC SLC that individually powers, addresses, and controls addressable notification appliances.

Key Features:

• IDNAC Addressable Notification: A regulated 29 VDC IDNAC SLC individually controls and supervises each notification appliance over a two-wire circuit, supporting up to 127 addresses and 139 unit loads for TrueAlert/TrueAlert ES appliances.

• IDNet 2 Initiating SLC: Provides built-in short-circuit isolation for TrueAlarm sensors and IDNet communicating devices, with standard capacity for up to 100 addressable points (expandable to 250 with loop expansion modules).

• 4 A Power Supply/Battery Charger: Includes a 4 A output power supply with dual-rate, temperature-compensated battery charging.

• Color Touchscreen Display: A 4.3 in. diagonal color touchscreen provides system status, point information, and password-controlled configuration access.

• Included Zone/Relay Module: Ships with one 4007-9801 eight-point Zone/Relay Module, expandable to four for conventional IDC or relay applications.

• Network Ready: Compatible with Simplex ES Net or 4120 fire alarm networks via an optional network interface card.
