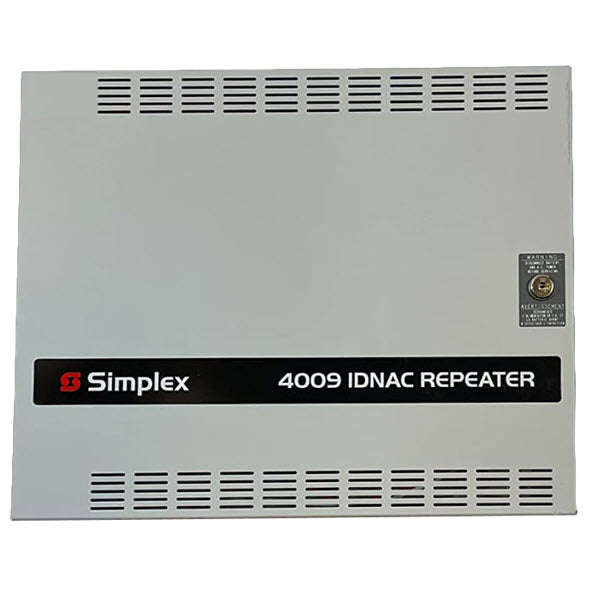

Simplex 4009-9601 Repeater IDNAC Platinum
IDNAC repeater and power/distance extender for Simplex TrueAlert fire alarm systems. Extends the range and current capability of IDNAC SLC (Signaling Line Circuit) with built-in battery charger and auxiliary power output.
Key Features:
• IDNAC Output: Single 3A IDNAC SLC output; extends up to 5 repeaters in parallel configuration
• Extended Range: Increases distance and current delivery up to 2-3 times that of conventional SLC wiring
• Auxiliary Power: 200 mA @ 29 VDC constant auxiliary power output during battery backup
• AC Input: 120 VAC or 220/240 VAC, 50/60 Hz (auto-select)
• Built-in Charger: Charges up to 12.7 Ah batteries; supports external cabinet for up to 25 Ah batteries
• Switching Voltage Regulation: Output voltage maintained in alarm at constant 29 VDC on battery backup
• Flexible Wiring: Supports Class B branch, Class A loop, and Class A riser configurations
• Listings: UL, ULC, CSFM Listed; FM Approved
