Simplex 4009-9601-RC

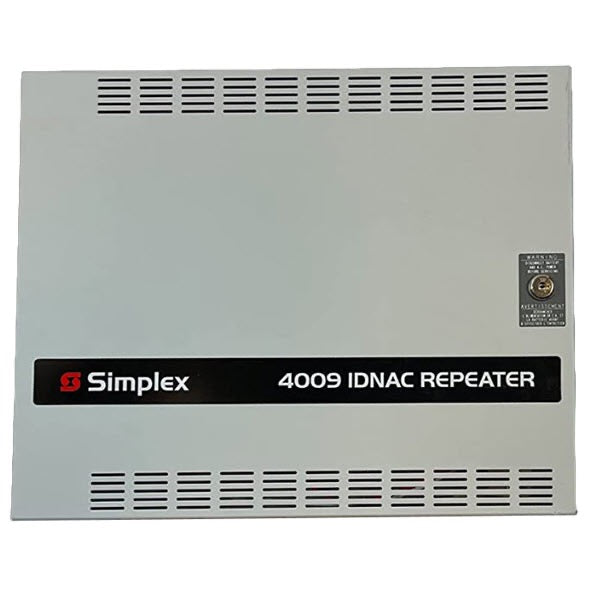

Simplex 4009-9601 IDNAC Repeater - Power and Distance Extender

The 4009-9601 Platinum IDNAC Repeater extends power delivery and wiring distance for Simplex TrueAlert and TrueAlert ES addressable notification appliances. It receives IDNAC SLC input and provides repeated 3A SLC output to additional notification device clusters, enabling distance and current capacity up to 3 times that of conventional notification systems.

Key Features:

• Power Delivery: Maintains output voltage during both AC input and battery backup, allowing strobes to operate at lower current and extended distances

• Distance Extension: Extends IDNAC SLC distance by 2 to 3 times over conventional wiring with high assurance operation

• Multiple Wiring Modes: Supports Class B branch extension, Class A loop extension, and Class A riser to Class B branch configurations

• Current Capacity: Provides 3A IDNAC SLC output; up to 139 additional unit loads or 3A repeater capacity

• Built-in Battery Charger: Charges up to 12.7 Ah cabinet batteries or 25 Ah external batteries

• Cabinet Options: Available in platinum or red finish

• AC Power: 120V or 240 VAC input, 50/60 Hz, auto-selectable

This unit is professionally reconditioned to original specifications.
