Simplex 4090-9120-RC

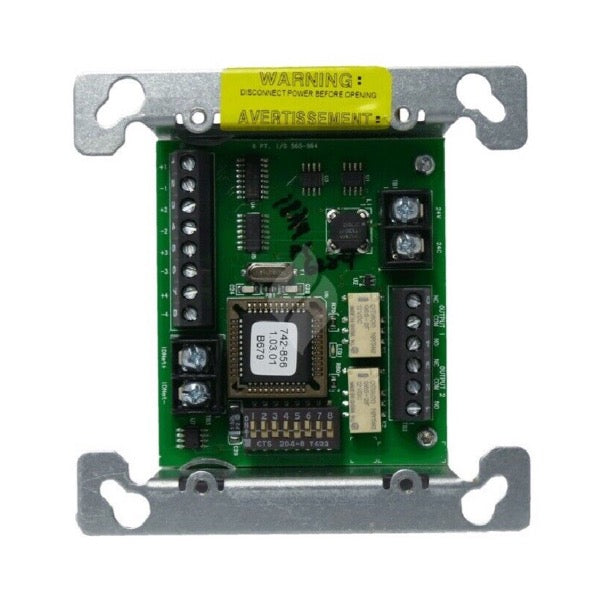

Simplex 4090-9120 Six Point Module with Four T-Sense Inputs

The 4090-9120 is a multi-point peripheral providing four supervised T-sense inputs and two Form C relay outputs in a single-address addressable package. It is ideal for monitoring fan damper position, pump motor status, low pressure conditions, and similar supervision applications in Simplex IDNet fire alarm systems.

Key Features:

• Four T-Sense Inputs: Supervised inputs monitor end-of-line resistor circuits for normal, open-circuit, or short conditions

• Two Relay Outputs: Form C contacts rated 2A @30 VDC (power-limited) or 0.5A @120 VAC (non-power-limited)

• Single Address: Uses one IDNet address for all four inputs and two outputs

• Wiring Distance: Up to 500 ft (152 m) to supervised contacts

• Compact Design: Mounts in standard 4-inch square electrical box (RACO 232)

• LED Indication: Status-indicating LED flashes to show normal conditions

• Compatibility: For Simplex 4100ES, 4010ES, or 4100U fire alarm panels

This unit is professionally reconditioned to original specifications.
