Simplex 4098-5613

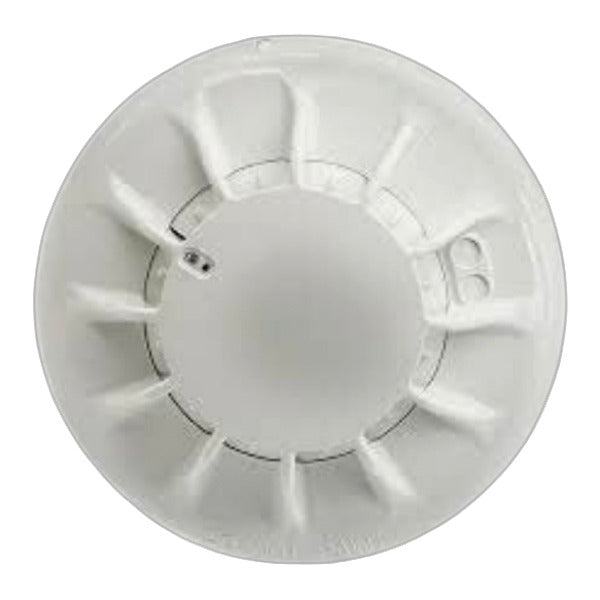

Simplex 4098-5613 Heat Detector Fixed Temperature 200°F and Rate-of-Rise

High-temperature heat detector designed for property protection in industrial and commercial environments. Combines fixed-temperature sensing at 200°F with rate-of-rise capability for rapid thermal response in manufacturing facilities and high-temperature areas where smoke detection is unsuitable.

Key Features:

• High Temperature Rating: Fixed temperature setpoint of 200°F (93.3°C) for industrial and high-heat applications

• Dual Thermal Sensing: Rate-of-rise and fixed-temperature detection for comprehensive thermal protection

• Alarm LED: Visual indicator lamp for easy identification of alarm condition

• Two-Wire Compatible: Designed for conventional 2-wire initiating device circuits (IDCs)

• Industrial Applications: Manufacturing facilities, warehouses, mechanical rooms, and complex HVAC-integrated environments

• Electrical Specifications: Typical standby current 80 microamps, typical alarm current 48 mA (direct-connect units), operating range 15-32 VDC

• Standards Compliant: Meets NFPA 72 National Fire Alarm and Signaling Code requirements
