Simplex 4098-9401-RC

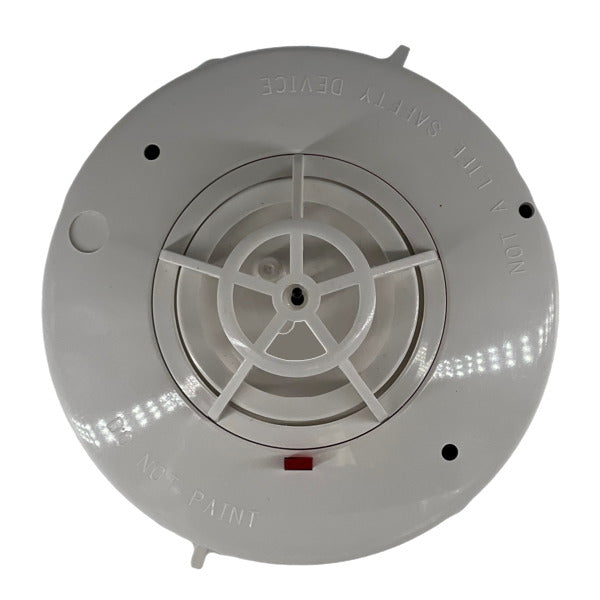

Simplex 4098-9401 Electronic Heat Detector - 135°F Fixed Temperature

The 4098-9401 is a non-addressable electronic heat detector using a thermistor-based design for rapid, accurate temperature sensing. It meets UL Standard 521 requirements and provides reliable heat detection for property protection applications where life safety is not required.

Key Features:

• Fixed Temperature: 135°F (57°C) threshold with inherently rate-compensated operation

• Voltage: 15-32 VDC filtered DC with 30% maximum ripple

• Alarm Current: Up to 86 mA maximum (2-wire), 24 mA typical (4-wire)

• Standby Current: 80 µA typical

• Spacing: 70 ft maximum spacing for UL; 15 ft x 15 ft for FM

• LED Status: Alarm-indicating LED on detector base

• Compatible Bases: 4098-9788 (2-wire), 4098-9682, 4098-9683 (4-wire)

This unit is professionally reconditioned to original specifications.
