Simplex 4099-9004-RC

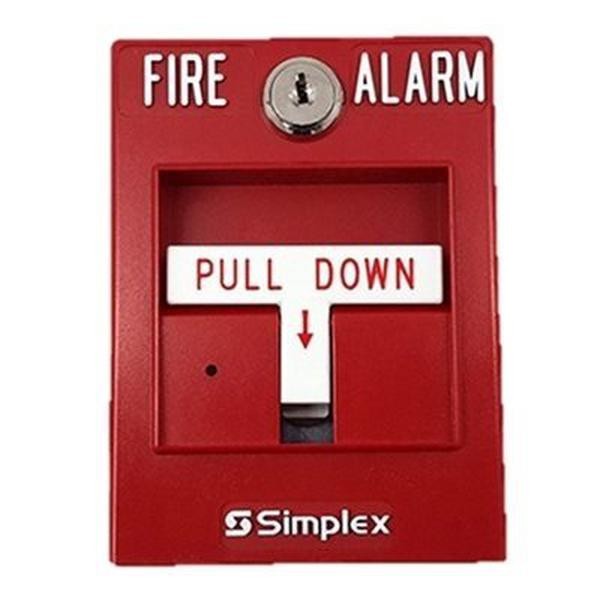

4099-9004 Addressable Manual Fire Alarm Station

The 4099-9004 is an individually addressable manual fire alarm station equipped with several essential features for efficient fire alarm systems. Here are its main attributes:

Addressable Communications:

• Power and data are supplied by IDNet or MAPNET II addressable communications, utilizing a single wire pair.
• Complies with ADA (Americans with Disabilities Act) requirements for accessibility.

Visual Indicator:

• Features a visible LED indicator that serves as a status indicator during communications, flashing when in operation, and remaining steady when the station has been activated.

Pull Lever Options:

• Offers a standard pull lever design.
• Optional models include the NO GRIP Single Action Station and Retrofit Kit, which feature a more accessible pull lever for users who may find the standard lever difficult to operate.

Activation Mechanism:

• Activation of the manual station requires a firm downward pull on the lever to trigger the alarm switch.
• The action breaks an internal plastic break-rod, which is optional and visible below the pull lever.
• The pull lever latches into the alarm position, remaining extended from the housing for clear visual indication.

Compatibility and Certification:

• UL listed to Standard 38.
• NEMA 1 rated.
• Compatible with various Simplex control panels, including Model Series 4007ES, 4008, 4010, 4010ES, 4100ES, 4100U, 4020, 4100, and 4120 fire alarm control panels equipped with IDNet or MAPNET II communications, as well as Model Series 2120 Communicating Device Transponders (CDTs) with MAPNET II communications.
