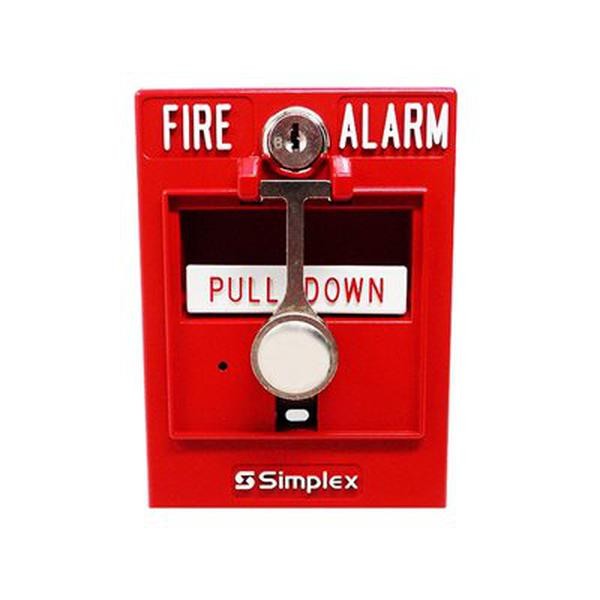

Simplex 4099-9005

The Simplex 4099-9005 is an addressable dual-action manual pull station for Simplex fire alarm systems using IDNet or MAPNET II communicating device protocol. The station features a break-glass activation mechanism with a recessed pull lever that triggers fire alarm signaling with tamper-resistant reset key lock control.

Key Features

• Dual-action break-glass manual pull station
• IDNet or MAPNET II addressable communication
• Integral Individual Addressable Module (IAM) for constant status monitoring
• Visible red LED indicator (flashing during communication, steady when activated)
• Tamper-resistant reset key lock
• Compatible with surface-mount and cast aluminum backboxes

Technical Specifications

• Vendor: Simplex
• Part Number: 4099-9005
• Model: Addressable Manual Pull Station
• Action Type: Dual-action (break-glass mechanism)
• Communication Protocol: IDNet or MAPNET II
• Compatible with: Simplex addressable fire alarm control panels
• Reset Mechanism: Key-operated tamper-resistant reset
• Accessories: Backboxes (2975-9178 surface mount steel, 2975-9022 aluminum), replacement break-glass (2099-9803), replacement break-rod (2099-9804)

Certifications

• UL Listed addressable manual pull station
• Compliant with fire alarm standards for addressable devices
