Simplex 4902-9210

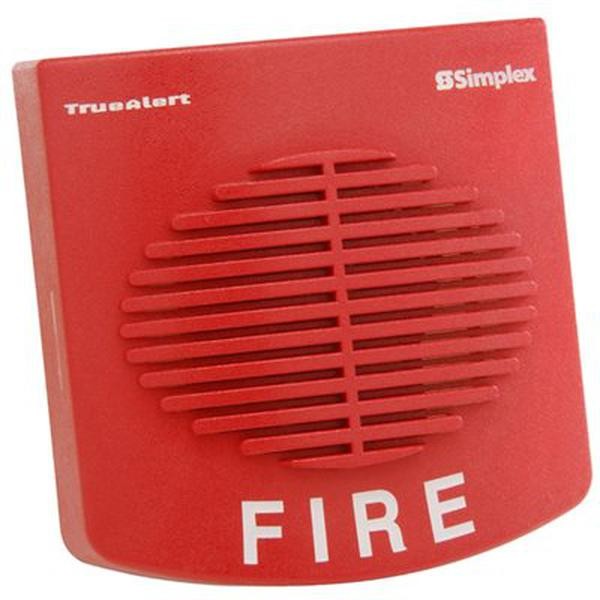

Simplex 4902-9210 Chime Wall Mount Red TrueAlert

A non-addressable TrueAlert electronic chime providing private mode audible notification for trained personnel in commercial and institutional facilities. Features SmartSync 2-wire control for synchronized operation with visual notification devices.

Key Features:

• Private Mode Operation: Dedicated audible notification for trained personnel instead of general public alarm, suitable for medical facilities and office buildings

• Low Current 24 VDC: Operates on standard Simplex fire alarm power supplies with minimal current draw

• SmartSync 2-Wire Control: Simultaneous control of chime and strobe on same circuit with independent silencing of chime tone while strobe continues operation

• Selectable Tone Patterns: Temporal Pattern operation with March Time pattern at 60 BPM or continuous operation

• Flexible Mounting: Semi-flush or surface wall mounting on standard single gang, double gang, or 4-inch square electrical box

• Compact Size: 5-1/8" H x 5" W x 1-1/2" D (130 mm x 127 mm x 38 mm) for discreet installation

• Red Housing with White Lettering: Professional fire alarm system identification and visual marking

• UL and CSA Listed: UL 464 listed for private mode applications, CSA certified for general signaling in Canada
