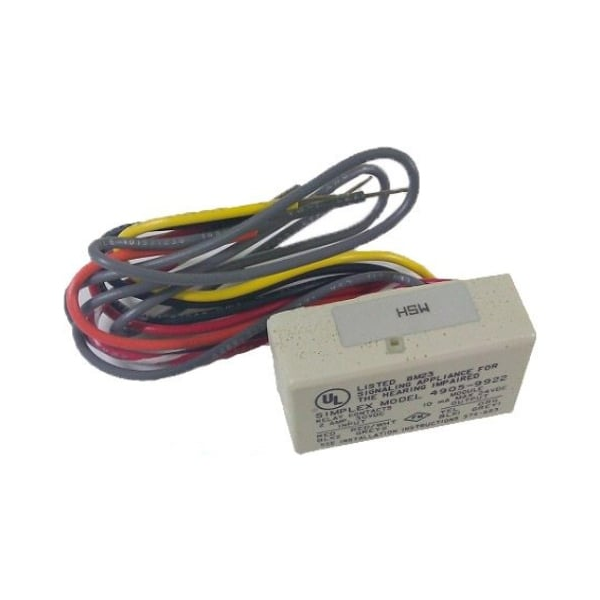

Simplex 4905-9922 Synchronized Flash Module
The Simplex 4905-9922 is an epoxy-encapsulated Class A synchronized flash module ("Cube," Style Z) used to add synchronized strobe control to Simplex notification appliance circuits.
Key Features:
• 2A NAC Rating: Rated for 2A NAC circuits with approximately 10 mA power draw.
• Synchronization Control: Adds 1 Hz strobe synchronization to Simplex strobes on NACs that do not natively provide that control, while compatible 24 VDC conventional appliances on the same circuit continue to operate normally.
• Compact Form Factor: Measures 1 3/8 in. x 2 7/16 in. x 13/16 in. (35 mm x 62 mm x 20 mm) with #18 AWG in/out leads.
• Supervised Wiring: Maintains circuit supervision continuity when installed.
