Simplex | 49CMTVC-WWFIRE

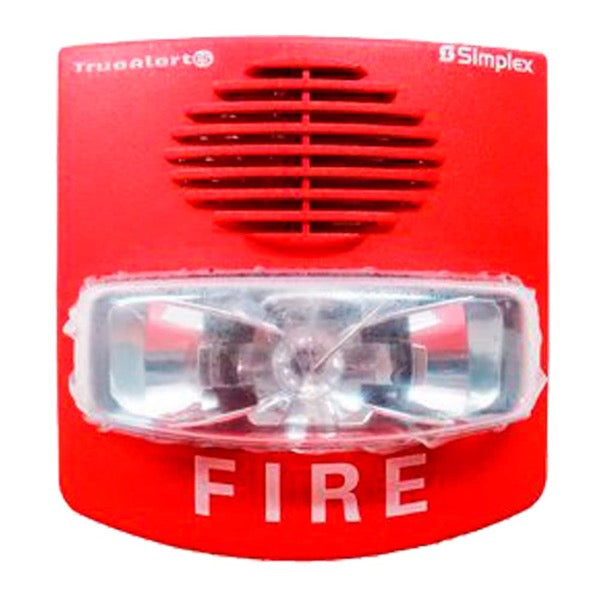

Simplex 49CMTVC-WWFIRE Multi-Tone Multi-Candela Horn/Strobe

The Simplex 49CMTVC-WWFIRE is a multi-tone, multi-candela horn/strobe notification appliance designed for fire alarm systems. It offers a range of audible tones and adjustable strobe intensities to meet various application requirements.

Key Features:

• Multi-Tone Selection: Provides a selection of tones, including 520 Hz Horn, Broadband Horn, Bell, Chime, High/Low, Slow Whoop, and Siren, allowing customization based on specific needs.

• Adjustable Sound Output: Features DIP switch settings to select high or low output levels, ensuring appropriate sound levels for different environments.

• Multi-Candela Strobe: Equipped with a xenon strobe light with selectable intensities of 15 cd, 30 cd, 75 cd, 110 cd, 135 cd, and 185 cd, providing flexibility to suit various room sizes and requirements.

• SmartSync Compatibility: Supports SmartSync two-wire control, allowing synchronized operation of audible and visual signals over a single circuit.

• Durable Construction: Built with high-impact, flame-retardant thermoplastic housing in white with red “FIRE” lettering, suitable for various architectural settings.

Specifications:

• Operating Voltage: 24 VDC

• Sound Output: Selectable high or low levels, with outputs varying based on tone selection and voltage.

• Strobe Flash Rate: Synchronized 1 Hz flash rate

• Mounting Options: Compatible with standard single gang, double gang, or 4-inch square electrical boxes, supporting both flush and surface mounting.

• Dimensions: 5 1/8 inches (130 mm) height x 5 inches (127 mm) width x 1 1/2 inches (38 mm) depth
