Simplex 49MTV-WRF-BA

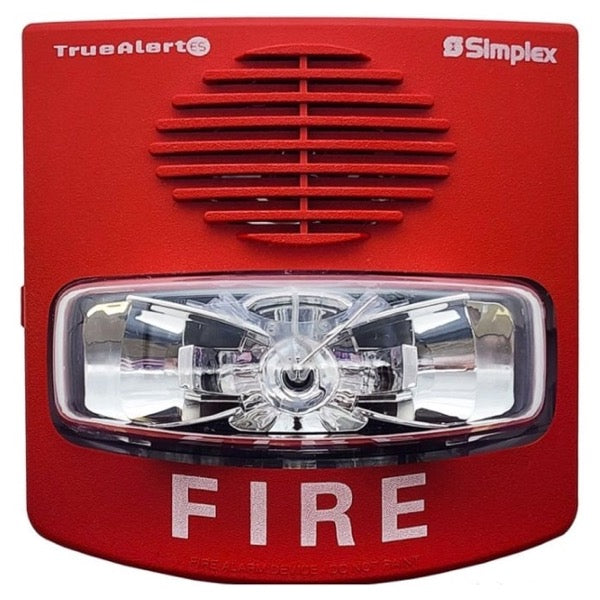

Simplex 49MTV-WRF-BA TrueAlert ES Wall Mount Multi-Tone Horn Strobe Red

Individually addressable multi-tone horn-strobe notification appliance with red housing and white FIRE lettering, designed for Simplex TrueAlert ES systems. Features programmable strobe intensity and multi-tone audible patterns controlled from the fire alarm panel via addressable signaling line circuit.

Key Features:

• TrueAlert ES Addressable: Individually addressed audible-visible notification appliance receiving power, supervision, and control signals from ES signaling line circuits

• Operating Voltage: 23VDC to 29.5VDC compatible with standard fire alarm power supplies and TrueAlert controllers

• Multi-Tone Horn: Flexible audible signaling with multiple tone patterns selectable from the control panel

• Strobe Intensity: Multi-candela xenon strobe with intensity programmable from 15, 30, 75, 110, 135, or 185 candelas via panel control or jumper selection

• Synchronization: Synchronized 1 Hz flash rate enabling coordination with other addressable strobes on the same circuit

• Wall Mount: Space-efficient wall-mounted design for commercial, institutional, and industrial fire alarm applications
