Simplex 562-817-RC

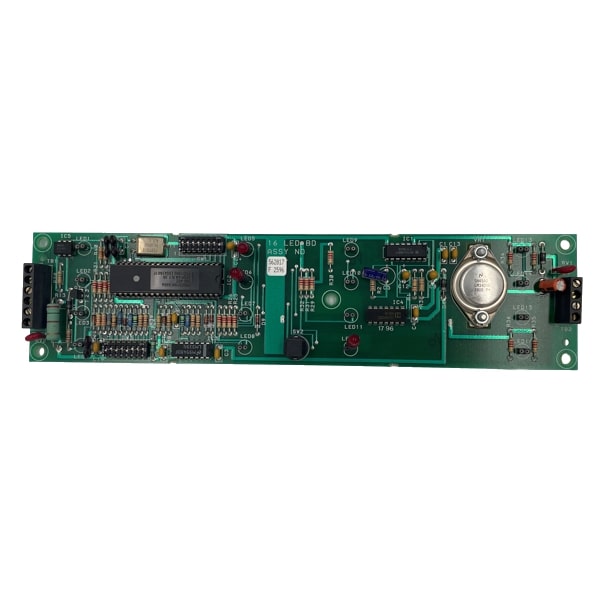

Simplex 562-817 4602 SCU Board

This Status Command Center (SCU) board serves as a remote LED status annunciator for Simplex fire alarm control panels. The 4602 Series provides 16 red LED zone status indicators to display critical fire alarm system information at a remote location, allowing facility occupants to immediately identify alarm status.

Key Features:

• 16 LED Zone Indicators: Red LED status lights display zone status for up to 16 zones with pluggable LEDs for color customization or replacement.

• Flexible Mounting: Mounts surface or flush on standard electrical boxes for convenient control panel or remote area installation.

• Supervised Communications: Uses supervised RUI (Remote Unit Interface) communications via single twisted shielded wire pair to the fire control panel with power supplied via second wire.

• System Compatibility: Compatible with Simplex 4005, 4007ES, 4010ES, 4100ES, 4100U series and legacy models 4002, 4020, 4100, 4120, and Universal Transponders.

• Built-in Test Function: Internal pushbutton switch provides LED test capability without accessing the control panel.

• UL Listed: Meets UL Standard 864 for fire alarm equipment compliance and reliability.

This unit is professionally reconditioned and has been fully tested to ensure reliable operation.
