Simplex 565-473-RC

RECON-4005 4 Pt IDC Assy

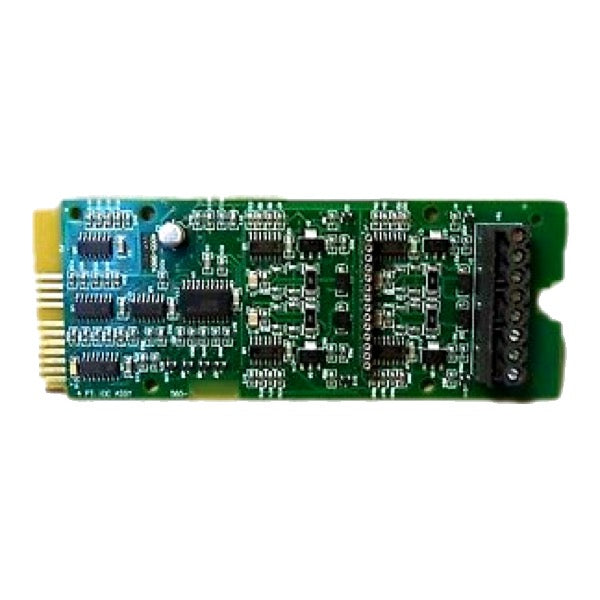

Simplex 565-473 (4005-9804) 4-Point Initiating Device Circuit (IDC) Assembly

The Simplex 565-473, also known by its assembly number 4005-9804, is a 4-point Initiating Device Circuit (IDC) module designed for use with Simplex fire alarm control panels. This module expands the system’s capacity to monitor additional initiating devices, such as manual pull stations and smoke detectors, by providing four additional Class B (Style B) IDC circuits.

Key Features:

• Expansion Capability: Adds four Class B IDC circuits to compatible Simplex fire alarm control panels, allowing for the connection of additional initiating devices.

• Individual Circuit Supervision: Each IDC is supervised for open and short circuit conditions, ensuring reliable monitoring and prompt detection of wiring faults.

• Compact Design: Designed for easy installation within the control panel enclosure, optimizing space utilization.

Specifications:

• Compatibility: Compatible with specific Simplex fire alarm control panels that support the 4005-9804 IDC assembly.

• IDC Capacity: Supports four Class B (Style B) initiating device circuits.

• Wiring Requirements: Utilizes standard fire alarm cabling for IDC connections; refer to the control panel’s installation manual for specific wiring guidelines.
