Simplex 565-488-RC
Simplex 565-488-RC
RECON-4003 Pwr Limited Pwr Sup Assy
Regular price
$862.42
Sale price
$862.42
Regular price
Shipping calculated at checkout.
Requires reconditioning, ships in 14–21 days.
Core Charge $450
Eligible for credit if core is returned within 30 days of order
A core charge is a fee you pay when buying a part, that will be returned to you when you send the old part you’re replacing back. In other words, it’s a monetary incentive to get your old part so that we can recondition and continue to offer this part to future customers.
Only 6 left!

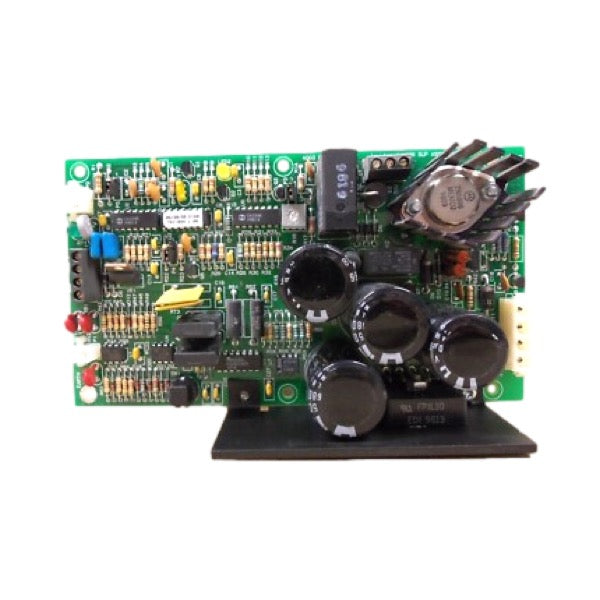

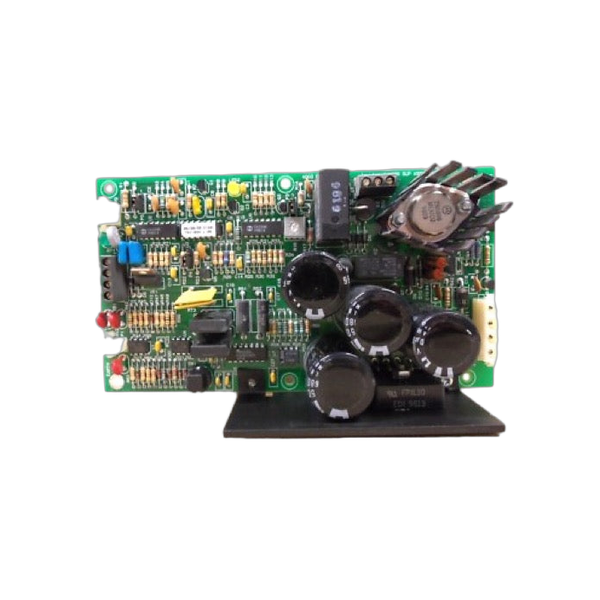

The Simplex 565-488 is a power supply assembly designed for the Simplex 4003-9001 voice command evacuation notification system. This linear power supply includes brownout protection and an integrated battery charger, delivering stable 24 VDC power with supervisory backup capability for emergency voice communications during fire events.
Key Features
- Full-wave linear power supply with regulated 24 VDC output
- Integrated battery charger for auxiliary battery backup
- Brownout protection prevents system dropout during power fluctuations
- Compatible with Simplex 4003-9001 voice evacuation panel
- Redundant input/output terminals for circuit flexibility
- Built-in fusing and protection circuits
- Reconditioned units have 1-year warranty and immediate availability
Technical Specifications
- Input: 120 VAC, 15 amp circuit recommended
- Output: 24 VDC, 3-5 amp capacity
- Battery Charger: Float-charge topology with low-impedance circuit
- Brownout Protection: Prevents output dropout below 100 VAC input
- Compatibility: Simplex 4003 series voice alarm control panel systems
- Form Factor: DIN-rail or panel-mount chassis assembly
- UL Listed Life Safety component for critical notification circuits
Certifications
- UL Listed power supply for fire alarm notification systems
- Compliant with NFPA 72 voice evacuation requirements
- Listed for life-safety critical power applications
