Simplex 976093-RC

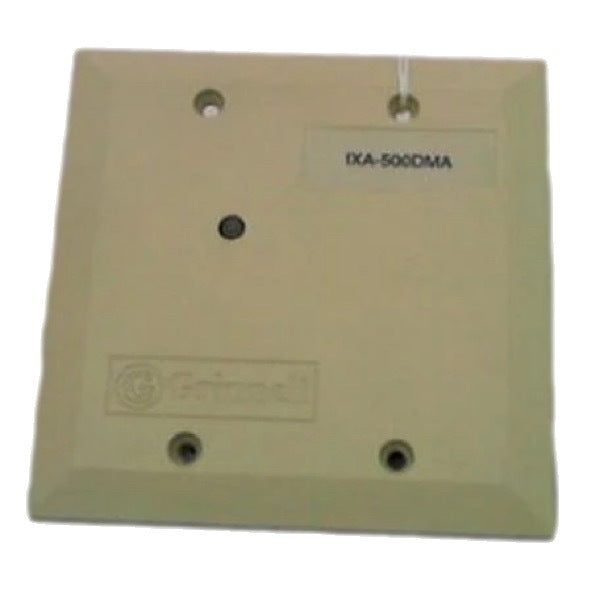

Simplex 976093-RC IXA-500DMA Addressable Detector Monitor

The Simplex IXA-500DMA is an AUTOCALL Addressable Detector Monitor Module providing addressable zone support for up to 15-30 compatible smoke and heat detectors on AUTOCALL TFX series fire control systems. This module monitors detector status on an initiating circuit and reports as a single addressable point on the control panel. This professionally reconditioned unit has been restored to full factory specifications.

Key Features:

• Addressable Detector Monitoring: Provides single addressable address for multiple detectors on one circuit

• Multi-Detector Support: Monitors 15-30 compatible smoke and heat detectors per module

• TFX System Compatible: Designed for AUTOCALL TFX-500/800 fire control panels

• Bicolor LED Status Indicators: Red LED for alarm, yellow LED for fault condition indication

• 24VDC Power Requirement: Requires external 24VDC from listed power supply for detector operation

• Indoor Application: Designed for indoor use with operating temperature range 32-120 degrees F

• Professionally Reconditioned: Fully tested and restored to original factory specifications
